VLSH2H5B | Disconnect switch, TeSys VLS, protruding rotary handle, hole mounting, 65x65mm, black handle, 5mm shaft | Square D by Schneider Electric

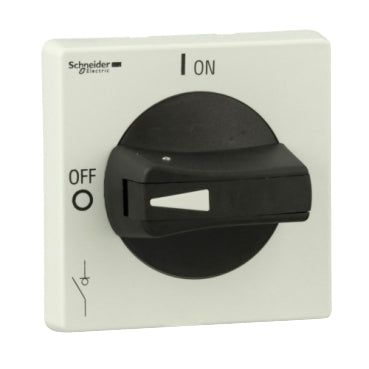

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VLSH2H5B
Overview
Details for VLSH2H5B
Disconnect switch, TeSys VLS, protruding rotary handle, hole mounting, 65x65mm, black handle, 5mm shaft
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This black rotary handle will work with any VLS3P DIN rail mount disconnect switch. This black rotary handle will also work with a VLS3P016D1, VLS3P025D1, VLS3P032D1 or VLS3P040D1 door mount disconnect switch. This handle mounts into a 0.89 in (22.5 mm) hole. 5 mm shafts are used with this handle. The front plate is grey in color. The rotary handle will accept 1 to 3 padlocks that are 0.16 to 0.31 inch in diameter. Handle is marked 0 / OFF - 1 / ON. Handle is 2.56 inches tall, 2.56 inches wide and 2.85 inches deep. The handle weighs 0.16 lbs. This handle is NEMA 1, 3R, 12, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.Specifications
- Range
- TeSys
- Device short name
- VLSH
- Product or Component Type
- Rotary handle
- range compatibility
- TeSys (TeSys VARIO LS) VLS3P
- Handle colour
- Black
- Handle front plate colour
- Grey
- rotary handle padlocking
- 1 to 3 padlocks 0.16…0.31 in (4…8 mm)
- Marking
- 0 - 1, OFF-ON
- fixing mode
- Hole 0.89 in (22.5 mm)
- Tightening torque
- 20.36 lbf.in (2.3 N.m)
- Base dimension
- 65 x 65 mm
- Height
- 2.56 in (65 mm)
- Width
- 2.56 in (65 mm)
- Depth
- 2.85 in (72.5 mm)
- Net Weight
- 0.16 lb(US) (0.074 kg)
- IP Degree of Protection
- IP65
- NEMA degree of protection
- NEMA 1, NEMA 2 UL 508, NEMA 3R UL 508, NEMA 4 UL 508, NEMA 4X UL 508, NEMA 12 UL 508, NEMA 12K UL 508
- Category
- 21734-TESYS VLS DISCONNECT SWITCHES
- Discount Schedule
- CP1
- GTIN
- 3606481156976
- Returnability
- Yes
- Country of origin
- IT
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.72 in (6.900 cm)
- Package 1 Width
- 2.68 in (6.800 cm)
- Package 1 Length
- 2.87 in (7.300 cm)
- Package 1 Weight
- 0.15 lb(US) (0.067 kg)
