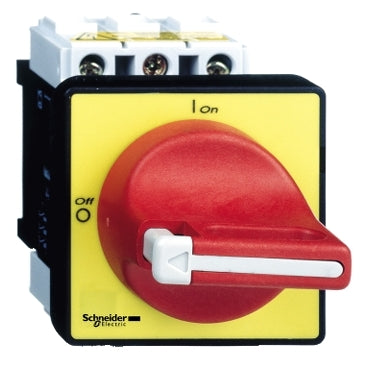

VCD01 | TeSys Vario - emergency stop switch disconnector - 20 A - on door | Square D by Schneider Electric

Brand: Square DSKU: VCD01

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VCD01

Jump to: Overview & Specifications Reviews

Overview Details for VCD01

TeSys Vario - emergency stop switch disconnector - 20 A - on door

VCD01 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 20A 690V, it is used for main and emergency stop switching in motor applications up to 5.5kW@400V AC-23. Composed of a V1 switch body, and a red padlockable handle, and a yellow 60x60mm front plate. For door mounting, with a central fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product Name: TeSys VARIO
Device Short Name: VCD
Product Type: Emergency stop switch disconnector
Device Composition: Switch;Handle
Mounting Support: Handle door;Switch door
Mounting Method: Hole 0.89 in (22.5 mm) handle
Performance Level: High performance
Number of Poles: 3P
Contact Type and Composition: 3 NO
[Ue] IEC Rated Operational Voltage: 690 V AC 50/60 Hz
IEC Rated Operational Power in W: 11 kW 690 V AC-23A);3 kW 230...240 V AC-3);4 kW 400...415 V AC-3);5.5 kW 500 V AC-3);7.5 kW 500 V AC-23A);7.5 kW 690 V AC-3);4 kW 230...240 V AC-23A);5.5 kW 400...415 V AC-23A)
[Ie] Rated Operational Current: 11 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current: 20 A
[Ithe] Conventional Enclosed Thermal Current: 16 A
Making Capacity ( I Rms): 200 A 400 V AC-21A;200 A 400 V AC-22A;200 A 400 V AC-23A
Breaking Capacity: 200 A 400 V AC-21A);200 A 400 V AC-22A);200 A 400 V AC-23A)
Rated Conditional Short Circuit Current: 10 kA 400 V 20 A aM;10 kA 400 V 20 A gG
[Icm] Rated Short Circuit Making Capacity: 1 kA 400 V at Ipeak
[Icw] Rated Short Time Withstand Current: 300 A 400 V 1 s
[Uimp] Rated Impulse Withstand Voltage: 8 kV
Suitability for Isolation: Yes
Network Type: DC;AC
Intermittent Duty Class: 30
Control Type: Rotary handle
Rotary Handle Mounting Style: Direct
Handle Color: Red
Handle Front Plate Color: Yellow
Rotary Handle Padlocking: 1 to 3 padlocks 0.16…0.31 in (4…8 mm)
Marking: 0 - 1
Mechanical Durability: 100000 cycles
Electrical Durability: 100000 cycles AC-21;30000 cycles DC-1...5
IEC Terminal Connection: Power circuit screw clamp terminals 0.02 in² (10 mm²) solid;Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end
Tightening Torque: Power circuit 18.59 lbf.in (2.1 N.m) screw clamp terminals
Base Dimension: 60 x 60 mm
Height: 2.91 in (74 mm)
Width: 2.36 in (60 mm)
Product Weight: 0.47 lb(US) (0.215 kg)
Standards: IEC 60947-3
Product Certifications: GL;UL;CSA;CCC;UKCA
Degree of Protection: IP20 conforming to IEC 60529;IP65
Protective Treatment: TC
Mechanical Robustness: Vibrations 10...150 Hz 1 gn) IEC 60068-2-6;Shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature for Operation: -4…122 °F (-20…50 °C)
Fire Resistance: 1760 °F (960 °C) IEC 60695-2-1
Compatibility Code: Main switch disconnector
Category: 21730-V VARIO SWITCH
Discount Schedule: CP1
GTIN: 3389110724868
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.15 in (8 cm)
Package 1 Width: 3.74 in (9.5 cm)
Package 1 Length: 4.72 in (12 cm)
Package 1 Weight: 7.94 oz (225 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 24
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 12.99 lb(US) (5.893 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 192
Package 3 Height: 30.31 in (77 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 124.86 lb(US) (56.636 kg)
Warranty: 18 months
