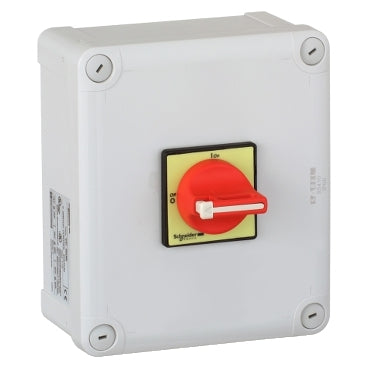

VC3GUN | TeSys Vario enclosed, emergency switch disconnector, 45A, UL/CSA | Square D by Schneider Electric

Brand: Square DSKU: VC3GUN

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VC3GUN

Jump to: Overview & Specifications Reviews

Overview Details for VC3GUN

TeSys Vario enclosed, emergency switch disconnector, 45A, UL/CSA

VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 30HP@600V. It provides an IP65 / NEMA type 12 enclosure, V3 Vario switch disconnector and red & yellow operator. VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 30HP@600V. It includes a V3 Vario switch disconnector rated 45A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V3 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).

Specifications

Range: TeSys
Product name: TeSys VARIO
Device short name: VC-GUN
Product or Component Type: Enclosed emergency stop switch disconnector
Performance level: High performance
Poles description: 3P
Control Type: Rotary handle
Handle colour: Red
Handle front plate colour: Yellow
rotary handle padlocking: 1 to 3 padlocks 0.16…0.31 in (4…8 mm)
Marking: 0 - 1
[Ue] rated operational voltage: 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 8 kV
[Ithe] conventional enclosed thermal current: 50 A
[Ie] rated operational current: 41.5 A AC-23A)400 V
rated operational power in W: 22 kW 400 V AC-23), 18.5 kW 400 V AC-3)
Intermittent duty class: 30
Making capacity ( I rms): 630 A 400 V AC-21A, 630 A 400 V AC-22A, 630 A 400 V AC-23A
[Icm] rated short-circuit making capacity: 2.1 kA 400 V at Ipeak
[Ith] conventional free air thermal current: 50.0 A IEC 690 V, 45 A UL 600 V
rated power in hp: 10 hp 240 V, UL, 20 hp 480 V, UL, 30 hp 600 V, UL
[Icw] rated short-time withstand Rms current: 756 A 400 V 1 s
rated conditional short-circuit current: 10 kA 400 V 63 A aM, 10 kA 400 V 63 A gG
breaking capacity: 500 A 400 V AC-21A), 500 A 400 V AC-22A), 500 A 400 V AC-23A)
Mechanical durability: 30000 cycles
electrical durability: 30000 cycles AC-21, 30000 cycles DC-1...5
Environmental characteristic: Standard environment
Suitability for isolation: Yes
connections - terminals: screw clamp terminals 0.04 in² (25 mm²) solid - with cable end, screw clamp terminals 0.02 in² (16 mm²) flexible
tightening torque: 35.40 lbf.in (4 N.m) screw clamp terminals
fire resistance: 1760 °F (960 °C) IEC 60595-2-1
handle front plate dimension: 60 x 60 mm
Height: 7.60 in (193 mm)
Width: 6.46 in (164 mm)
Depth: 5.20 in (132 mm)
Net Weight: 2.05 lb(US) (0.93 kg)
standards: IEC 60947-4-1, CSA C22.2 No 14, UL 508, IEC 60204
protective treatment: TC
IP degree of protection: IP65 conforming to IEC 60529
NEMA Degree of Protection: NEMA 12
mechanical robustness: Vibrations 10...150 Hz 1 gn) IEC 60068-2-6, Shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature for Operation: -4…122 °F (-20…50 °C)
Category: 21730-V VARIO SWITCH
Discount Schedule: CP1
GTIN: 3389119413190
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.54 in (16.600 cm)
Package 1 Width: 7.32 in (18.600 cm)
Package 1 Length: 7.80 in (19.800 cm)
Package 1 Weight: 2.24 lb(US) (1.016 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 6
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 15.75 in (40.000 cm)
Package 2 Length: 23.62 in (60.000 cm)
Package 2 Weight: 15.09 lb(US) (6.844 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 24
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 23.62 in (60.000 cm)
Package 3 Length: 31.50 in (80.000 cm)
Package 3 Weight: 84.81 lb(US) (38.468 kg)
Warranty: 18 months
