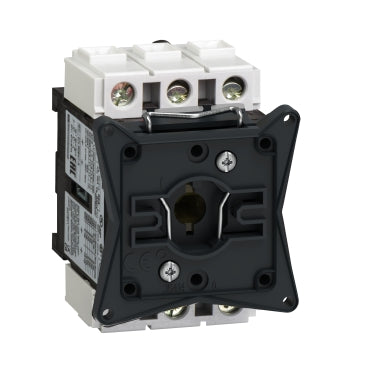

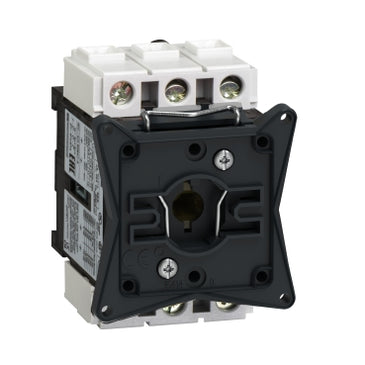

V0 | TeSys VARIO - Switch body for switch-disconnector - 3 poles - 25 A | Square D by Schneider Electric

Brand: Square DSKU: V0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V0

Jump to: Overview & Specifications Reviews

Overview Details for V0

TeSys VARIO - Switch body for switch-disconnector - 3 poles - 25 A

V0 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 25A 690V, it is used in motor applications up to 7.5kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product Name: TeSys VARIO
Device Short Name: V
Product Type: Switch body
Mounting Support: Symmetrical rail, Plate
Performance Level: High performance
Number of Poles: 3P
Contact Type and Composition: 3 NO
Network type: AC, DC
Network frequency: 50/60 Hz
[Ue] IEC Rated Operational Voltage: 690 V AC 50/60 Hz
IEC Rated Operational Power in W: 11 kW 500 V AC-23A), 11 kW 690 V AC-3), 15 kW 690 V AC-23A), 4 kW 230...240 V AC-3), 5.5 kW 400...415 V AC-3), 7.5 kW 500 V AC-3), 5.5 kW 230...240 V AC-23A), 7.5 kW 400...415 V AC-23A)
[Ie] Rated Operational Current: 14.5 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current: 25 A
[Ithe] Conventional Enclosed Thermal Current: 20 A
Making capacity ( I Rms): 250 A 400 V AC-21A, 250 A 400 V AC-22A, 250 A 400 V AC-23A
Breaking Capacity: 200 A 400 V AC-21A), 200 A 400 V AC-22A), 200 A 400 V AC-23A)
Rated Conditional Short Circuit Current: 10 kA 400 V 25 A aM, 10 kA 400 V 25 A gG
[Icm] Rated Short Circuit Making Capacity: 1 kA 400 V at Ipeak
Intermittent duty class: 30
Suitability for isolation: Yes
[Uimp] rated impulse withstand voltage: 8 kV
[Icw] rated short-time withstand Rms current: 300 A 400 V 1 s
Mechanical Durability: 100000 cycles
Electrical Durability: 100000 cycles AC-21, 30000 cycles DC-1...5
IEC Terminal Connection: Power circuit screw clamp terminals 0.02 in² (10 mm²) solid, Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end
Tightening Torque: Power circuit 18.59 lbf.in (2.1 N.m) screw clamp terminals
Height: 2.91 in (74 mm)
Width: 2.17 in (55 mm)
Depth: 2.36 in (60 mm)
Product Weight: 0.44 lb(US) (0.2 kg)
Standards: IEC 60947-3
Product Certifications: UL, CSA, GL, UKCA, CCC
Degree of Protection: IP20 conforming to IEC 60529
Protective Treatment: TC
Mechanical Robustness: Vibrations 10...150 Hz 1 gn) IEC 60068-2-6, Shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature for Operation: -4…122 °F (-20…50 °C)
Fire Resistance: 1760 °F (960 °C) IEC 60695-2-1
Category: 21730-V VARIO SWITCH
Discount Schedule: CP1
GTIN: 3389110551686
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.72 in (12 cm)
Package 1 Width: 3.31 in (8.4 cm)
Package 1 Length: 3.23 in (8.2 cm)
Package 1 Weight: 6.14 oz (174 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 24
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 10.29 lb(US) (4.668 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 192
Package 3 Height: 30.31 in (77 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 101.07 lb(US) (45.844 kg)
Warranty: 18 months
