Documents: TMC2AI2

Datasheet More Info

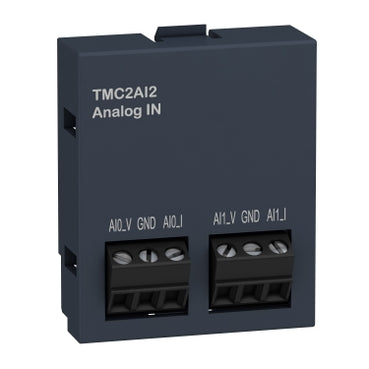

TMC2AI2 | Analogue input cartridge, Modicon M221, 2 analog inputs, I/O extension | Square D by Schneider Electric

Brand: Square DSKU: TMC2AI2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TMC2AI2

Jump to: Overview & Specifications Reviews

Overview Details for TMC2AI2

Analogue input cartridge, Modicon M221, 2 analog inputs, I/O extension

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 inputs with 12bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Specifications

Range of Product: Modicon M221
Product or Component Type: Analogue input cartridge
Product Compatibility: Modicon M221C
Analogue input number: 2
analogue input type: current 4...20 mA, current 0...20 mA, voltage 0...10 V
analogue input resolution: 12 bits
LSB value: 2.44 mV 0...10 V voltage, 4.88 µA 0...20 mA current, 3.91 µA 4...20 mA current
Conversion time: 20 ms
sampling duration: 10 ms
absolute accuracy error: +/- 0.1 % of full scale 77 °F (25 °C), +/- 1 % of full scale
Temperature Drift: +/- 0.02 %FS/°C
repeat accuracy: +/- 0.5 %FS
non-linearity: +/- 0.01 %FS
Cross talk: <= 1 LSB
Type of Cable: Twisted shielded pairs cable
electrical connection: 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs
maximum cable distance between devices: Twisted shielded pairs cable <98.43 ft (30 m) input
insulation: Non-insulated between analogue input and internal logic
Height: 1.61 in (41 mm)
Depth: 0.59 in (15 mm)
Width: 1.38 in (35 mm)
Net Weight: 0.03 lb(US) (0.015 kg)
permissible continuous overload: 13 V voltage, 40 mA current
input impedance: <= 250 Ohm current, >= 1 MOhm voltage
Immunity to microbreaks: 10 ms
Category: 22533-M2XX PLC & ACCESSORIES
Discount Schedule: MSX
GTIN: 3606480649080
Returnability: Yes
Country of origin: JP
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.41 in (3.594 cm)
Package 1 Width: 1.85 in (4.692 cm)
Package 1 Length: 2.78 in (7.059 cm)
Package 1 Weight: 1.06 oz (30.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 75
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 7.30 lb(US) (3.31 kg)
