TM221CE16T | Logic controller, Modicon M221, 16 IO transistor PNP Ethernet | Square D by Schneider Electric

Brand: Square DSKU: TM221CE16T

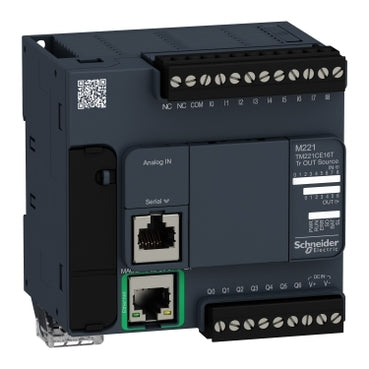

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TM221CE16T

Jump to: Overview & Specifications Reviews

Overview Details for TM221CE16T

Logic controller, Modicon M221, 16 IO transistor PNP Ethernet

This TM221 controller is part of the Modicon M221 Logic controller range. It has 16 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.

Specifications

Range of Product: Modicon M221
Product or Component Type: Logic controller
[Us] rated supply voltage: 24 V DC
discrete input number: 9;discrete input 4 fast input IEC 61131-2 Type 1
analogue input number: 2 0...10 V
discrete output type: Transistor
discrete output number: 7 transistor 2 fast output
discrete output voltage: 24 V DC
discrete output current: 0.5 A
discrete I/O number: 16
maximum number of I/O expansion module: 4 transistor output;4 relay output
supply voltage limits: 20.4…28.8 V
inrush current: 35 A
maximum power consumption in W: 11 W 24 V with max number of I/O expansion module);4.6 W 24 V without I/O expansion module)
power supply output current: 0.325 A 5 V expansion bus;0.15 A 24 V expansion bus
discrete input logic: Sink or source (positive/negative)
discrete input voltage: 24 V
discrete input voltage type: DC
analogue input resolution: 10 bits
LSB value: 10 mV
conversion time: 1 ms per channel + 1 controller cycle time analog input
permitted overload on inputs: +/- 30 V DC 5 min maximum)analog input;+/- 13 V DC permanent)analog input
voltage state 1 guaranteed: >= 15 V input
voltage state 0 guaranteed: <= 5 V input
discrete input current: 7 mA discrete input;5 mA fast input
input impedance: 3.4 kOhm discrete input;100 kOhm analog input;4.9 kOhm fast input
response time: 35 µs turn-off;I2...I5 input;5 µs turn-on;I0;I1;I6;I7 fast input;35 µs turn-on;other terminals input;5 µs turn-off;I0;I1;I6;I7 fast input;100 µs turn-off;other terminals input;5 µs turn-on;turn-off;Q0...Q1 output;50 µs turn-on;turn-off;Q2...Q3 output;300 µs turn-on;turn-off;other terminals output
configurable filtering time: 0 ms input;3 ms input;12 ms input
discrete output logic: Positive logic (source)
maximum current per output common: 3.5 A
Output Frequency (sync to mains): 100 kHz fast output (PWM/PLS mode) Q0...Q1;5 kHz output Q2...Q3;0.1 kHz output Q4...Q6
absolute accuracy error: +/- 1 % of full scale analog input
maximum leakage current: 0.1 mA transistor output
maximum voltage drop: <1 V
mechanical durability: 20000000 cycles transistor output
maximum tungsten load: <12 W output and fast output
protection type: Overload and short-circuit protection 1 A
reset time: 1 s automatic reset
memory capacity: 256 kB user application and data RAM 10000 instructions;256 kB internal variables RAM
data backed up: 256 kB built-in flash memory backup of application and data
data storage equipment: 2 GB SD card optional)
battery type: BR2032 lithium non-rechargeable 4 year(s)
backup time: 1 year 77 °F (25 °C) by interruption of power supply)
execution time for 1 KInstruction: 0.3 ms event and periodic task
execution time per instruction: 0.2 µs Boolean
exct time for event task: 60 µs response time
maximum size of object areas: 512 %M memory bits;255 %C counters;512 %KW constant words;255 %TM timers;8000 %MW memory words
realtime clock: With
clock drift: <= 30 s/month 77 °F (25 °C)
regulation loop: Adjustable PID regulator up to 14 simultaneous loops
positioning functions: PTO 2 pulse/direction 100 kHz);PTO 1 CW/CCW 100 kHz)
Function Available: PWM;Frequency generator;PLS
counting input number: 4 fast input (HSC mode) 100 kHz 32 bits
counter function: Single phase;A/B;Pulse/direction
integrated connection type: USB port mini B USB 2.0;Non isolated serial link serial 1 RJ45 RS232/RS485;Ethernet RJ45
supply: Serial)serial link supply 5 V;<200 mA
transmission rate: 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485;1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232;480 Mbit/s USB
communication port protocol: USB port USB - SoMachine-Network;Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network;Ethernet
port Ethernet: 10BASE-T/100BASE-TX 1 328.08 ft (100 m) copper cable
Communication Service: Modbus TCP client;DHCP client;Modbus TCP slave device;Modbus TCP server;Ethernet/IP adapter
local signalling: for PWR 1 LED (green);for RUN 1 LED (green);for module error (ERR) 1 LED (red);for SD card access (SD) 1 LED (green);for BAT 1 LED (red);for I/O state 1 LED per channel (green);for SL 1 LED (green);for ACT Ethernet network activity (green);for Link (Link Status) Ethernet network link (yellow)
electrical connection: removable screw terminal block for inputs;removable screw terminal block for outputs;terminal block;3 for connecting the 24 V DC power supply;connector;4 for analogue inputs;Mini B USB 2.0 connector for a programming terminal
maximum cable distance between devices: Shielded cable <32.81 ft (10 m) fast input;Unshielded cable <98.43 ft (30 m) output;Unshielded cable <98.43 ft (30 m) digital input;Unshielded cable <3.28 ft (1 m) analog input;Shielded cable <9.84 ft (3 m) fast output
insulation: Between input and internal logic 500 V AC;Between fast input and internal logic 500 V AC;Non-insulated between inputs;Between output and internal logic 500 V AC;Non-insulated between analogue input and internal logic;Non-insulated between analogue inputs
Marking: CE
mounting support: Top hat type TH35-15 rail IEC 60715;Top hat type TH35-7.5 rail IEC 60715;plate or panel with fixing kit
Height: 3.54 in (90 mm)
Depth: 2.76 in (70 mm)
Width: 3.74 in (95 mm)
Net Weight: 0.76 lb(US) (0.346 kg)
Standards: EN/IEC 61010-2-201;EN/IEC 60664-1;EN/IEC 61131-2
Product Certifications: EAC;DNV-GL;RCM;IACS E10;ABS;cULus;LR;CSA
environmental characteristic: Ordinary and hazardous location
resistance to electrostatic discharge: 8 kV in air EN/IEC 61000-4-2;4 kV on contact EN/IEC 61000-4-2
resistance to electromagnetic fields: 9.14 V/m (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3;2.74 V/m (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3;0.91 V/m (1 V/m) 2...2.7 GHz EN/IEC 61000-4-3
resistance to magnetic fields: 98.43 A/m (30 A/m) 50/60 Hz EN/IEC 61000-4-8
resistance to fast transients: 2 kV EN/IEC 61000-4-4 power lines);2 kV EN/IEC 61000-4-4 relay output);1 kV EN/IEC 61000-4-4 I/O);1 kV EN/IEC 61000-4-4 Ethernet line);1 kV EN/IEC 61000-4-4 serial link)
surge withstand: 2 kV power lines (AC) common mode EN/IEC 61000-4-5;2 kV relay output common mode EN/IEC 61000-4-5;1 kV I/O common mode EN/IEC 61000-4-5;1 kV shielded cable common mode EN/IEC 61000-4-5;0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5;1 kV power lines (AC) differential mode EN/IEC 61000-4-5;1 kV relay output differential mode EN/IEC 61000-4-5;0.5 kV power lines (DC) common mode EN/IEC 61000-4-5
resistance to conducted disturbances: 10 V 0.15...80 MHz EN/IEC 61000-4-6;3 V 0.1...80 MHz Marine specification (LR;ABS;DNV;GL);10 V spot frequency (2;3;4;6.2;8.2;12.6;16.5;18.8;22;25 MHz) Marine specification (LR;ABS;DNV;GL)
electromagnetic emission: Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15…0.5 MHz EN/IEC 55011;Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5…300 MHz EN/IEC 55011;Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz EN/IEC 55011;Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz EN/IEC 55011;Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz EN/IEC 55011;Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz EN/IEC 55011;Radiated emissions 47 dBμV/m QP class A 10 m)200…1000 MHz EN/IEC 55011
immunity to microbreaks: 10 ms
ambient air temperature for operation: 14…131 °F (-10…55 °C) horizontal installation);14…95 °F (-10…35 °C) vertical installation)
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
relative humidity: 10…95 %;without condensation in operation);10…95 %;without condensation in storage)
IP degree of protection: IP20 with protective cover in place
pollution degree: <= 2
Operating altitude: 0...6561.68 ft (0...2000 m)
Storage altitude: 0.00…9842.52 ft (0…3000 m)
vibration resistance: 3.5 mm 5…8.4 Hz symmetrical rail;3.5 mm 5…8.4 Hz panel mounting;1 gn 8.4…150 Hz symmetrical rail;1 gn 8.4…150 Hz panel mounting
shock resistance: 147 m/s² 11 ms
Category: 22533-M2XX PLC & ACCESSORIES
Discount Schedule: MSX
GTIN: 3606480648762
Returnability: Yes
Country of origin: TW
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.17 in (10.6 cm)
Package 1 Width: 5.51 in (14.0 cm)
Package 1 Length: 5.47 in (13.9 cm)
Package 1 Weight: 10.58 oz (300.0 g)
Unit Type of Package 2: S04
Number of Units in Package 2: 20
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 15.75 in (40.0 cm)
Package 2 Length: 23.62 in (60.0 cm)
Package 2 Weight: 15.39 lb(US) (6.983 kg)
