TM1SHTM4 | Humidity and Temperature sensor, Modbus | Square D by Schneider Electric

Brand: Square DSKU: TM1SHTM4

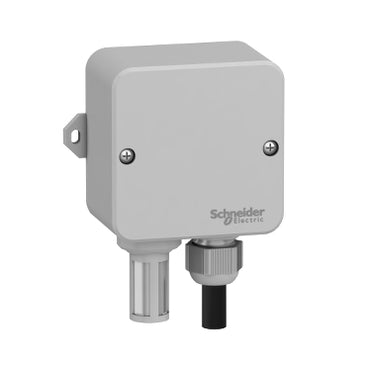

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TM1SHTM4

Jump to: Overview & Specifications Reviews

Overview Details for TM1SHTM4

Humidity and Temperature sensor, Modbus

Specifications

Range of Product: Modicon M171/M172
Accessory / separate part category: Measurement accessory
Accessory / Separate Part Type: Probe
Device mounting: Wall mounted
Mounting Support: Mounting box
[Us] rated supply voltage: 9...28 V AC, 9...40 V DC
Maximum Power Consumption: 35 mA
output type: RS485 Modbus RTU +/- 3 % RH, RS485 Modbus RTU -40…140 °F (-40…60 °C) +/- 1 °C
Product Specific Application: Humidity control
electrical connection: Screw-clamp terminals
Fixing Mode: 2 fixing points
Width: 3.94 in (100 mm)
Height: 4.80 in (122 mm)
Depth: 1.99 in (50.5 mm)
Net Weight: 0.31 lb(US) (0.14 kg)
IP Degree of Protection: IP65
Ambient Air Temperature for Operation: -40…140 °F (-40…60 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Relative humidity: 0…100 %
Pollution degree: 2
Overvoltage category: I
Category: 22537-M171 / M172 HVAC CONTROLLERS
Discount Schedule: PC12
GTIN: 3606481390172
Returnability: No
Country of origin: IT
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.56 in (6.5 cm)
Package 1 Width: 4.53 in (11.5 cm)
Package 1 Length: 5.71 in (14.5 cm)
Package 1 Weight: 8.08 oz (229.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 24
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 12.41 lb(US) (5.627 kg)
