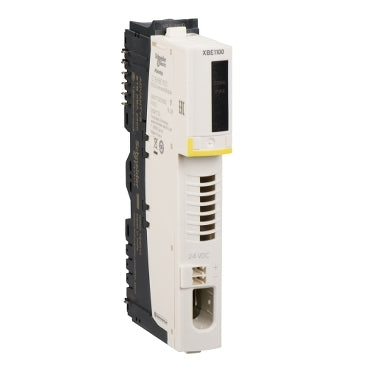

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to STBXBE2100K

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D STBXBE2100K Documents

Datasheet More Info

Overview

Details for STBXBE2100K

Modicon STB - bus extension kit

Specifications

Range of Product: Modicon STB distributed I/O solution
Product or Component Type: Bus extension kit
Kit composition: STBXBE2100 island bus extension, STBXTS1110, 5-terminal screw type connector, STBXBA2000 I/O base, STBXTS2110, 5-terminal spring clamp connector
Mounting Location: End of the last segment
Product Compatibility: Standard STB modules
electrical connection: 5 pins for CANopen devices interface
Marking: CE
Overvoltage category: II
electromagnetic compatibility: Immunity to electromagnetic interference IEC 61131-2
Product Certifications: FM Class 1 Division 2, UL, CSA
pollution degree: 2 IEC 60664-1
Operating altitude: <= 6561.68 ft (2000 m)
IP degree of protection: IP20 conforming to EN 61131-2 class 1
ambient air temperature for operation: 32…140 °F (0…60 °C) without derating)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
relative humidity: 95 % 140 °F (60 °C) without condensation
vibration resistance: +/-0.35 mm 10…58 Hz, 3 gn 58…150 Hz 35 x 7.5 mm symmetrical DIN rail, 5 gn 58…150 Hz 35 x 15 mm symmetrical DIN rail
shock resistance: 30 gn 11 ms IEC 88 reference 2-27
Category: 18215-ADVANTYS STB I/O
Discount Schedule: PC32
GTIN: 3595863949230
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.06 in (2.7 cm)
Package 1 Width: 3.15 in (8.0 cm)
Package 1 Length: 5.24 in (13.3 cm)
Package 1 Weight: 4.73 oz (134.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 20
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 5.95 lb(US) (2.7 kg)
Warranty: 18 months
