STBXBE1100K | Modicon STB - EOS internal bus extension kit | Square D by Schneider Electric

Brand: Square DSKU: STBXBE1100K

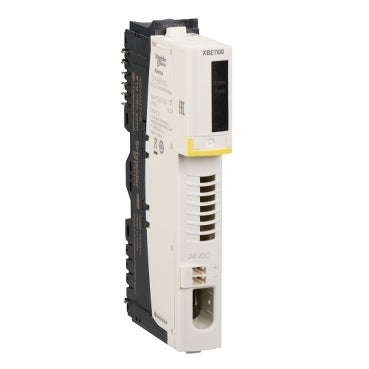

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to STBXBE1100K

Jump to: Overview & Specifications Reviews

Overview Details for STBXBE1100K

Modicon STB - EOS internal bus extension kit

This bus extension kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This EOS internal bus extension kit is furnished with FireWire for interface. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA, UL. It is compatible with standard STB modules. The kit includes STBXTS1120, 2-terminal screw type connector, STBXTS2120, 2-terminal spring clamp connector, STBXBA2400 size 2 base and STBXBE1100 module. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.

Specifications

Range of Product: Modicon STB distributed I/O solution
Product or Component Type: EOS internal bus extension kit
Kit composition: STBXBE1100 module, STBXBA2400 size 2 base, STBXTS2120, 2-terminal spring clamp connector, STBXTS1120, 2-terminal screw type connector
Mounting Location: End of segment (except for the last segment)
Product Compatibility: Standard STB modules
electrical connection: Firewire interface
Marking: CE
Overvoltage category: II
electromagnetic compatibility: Immunity to electromagnetic interference IEC 61131-2
Product Certifications: FM Class 1 Division 2, CSA, UL
pollution degree: 2 IEC 60664-1
Operating altitude: <= 6561.68 ft (2000 m)
IP degree of protection: IP20 conforming to EN 61131-2 class 1
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
relative humidity: 95 % 140 °F (60 °C) without condensation
vibration resistance: +/-0.35 mm 10…58 Hz, 3 gn 58…150 Hz 35 x 7.5 mm symmetrical DIN rail, 5 gn 58…150 Hz 35 x 15 mm symmetrical DIN rail
shock resistance: 30 gn 11 ms IEC 88 reference 2-27
Category: 18215-ADVANTYS STB I/O
Discount Schedule: PC32
GTIN: 3595863949254
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.02 in (2.6 cm)
Package 1 Width: 3.11 in (7.9 cm)
Package 1 Length: 5.12 in (13.0 cm)
Package 1 Weight: 4.02 oz (114.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 42
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 11.16 lb(US) (5.06 kg)
Warranty: 18 months
