SSP1A125BD | Solid state relay, Harmony, 25A, panel mount, zero voltage switching, input 3…32V DC, output 24…300V AC | Square D by Schneider Electric

Brand: Square DSKU: SSP1A125BD

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SSP1A125BD

Jump to: Overview & Specifications Reviews

Overview Details for SSP1A125BD

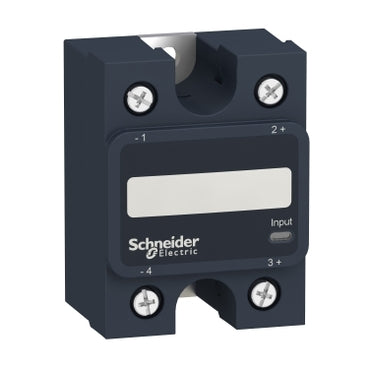

Solid state relay, Harmony, 25A, panel mount, zero voltage switching, input 3…32V DC, output 24…300V AC

This panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 25 A, is controlled with a 3 to 32 V DC circuit, has a rated load voltage of 24 to 300 V AC output. It also has a test button for easy debugging, testing and commissioning It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad, or on DIN rails with an accessory heatsink It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events

Specifications

Range of Product: Harmony Solid State Relays
Product or Component Type: Solid state relay up to 30 A
Device short name: SSP1
Mounting Support: Panel
Number of phases: 1 phase
Line Rated Current: 25 A
Solid state output type: Zero voltage switching, SCR output
Output switching mode: Zero voltage switching
[Uc] control circuit voltage: 3...32 V DC
minimum switching voltage: 3 V DC turn-on
maximum switching voltage: 1 V DC turn-off
response time: 0.5 cycle (turn-on), 0.5 cycle (turn-off)
Input current: 10 mA at 12 V DC
output voltage: 24...300 V AC
Load current: 0.15…25 A
Transient overvoltage: 600 V
surge current: 250 A 16.6 ms
maximum I²t for fusing: 259 A².s for 8.33 ms at 60 Hz, 285 A².s for 10 ms at 50 Hz
Co-ordination type: Type 1 - 25 A miniature circuit breaker (MCB) B, Type 2 - 20 A miniature circuit breaker (MCB) B
maximum leakage current: 1 mA off-state
maximum voltage drop: <1.15 V on-state
dV/dt: 500 V/µs off-state at maximum voltage
Power factor: 0.5 (with maximum load)
Motor controller rating: 0.5 hp 120 V AC, 1 hp 240 V AC
insulation resistance: 1000 MOhm at 500 V DC
Maximum capacitance: 10 pF for input/output
dielectric strength: 4 kV AC for input/output, 4 kV AC for input or output to case
[Uimp] rated impulse withstand voltage: 6 kV output to case, 6 kV input to output
tightening torque: 1.5...1.7 N.m for input, 2...2.2 N.m for output
connections - terminals: Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input, Screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output, Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input, Screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output, Forked type tag connectors 9.2 x 4 mm input, Ring lugs 9.2 x 4 mm input, Forked type tag connectors 11.7 x 4.5 mm output, Ring lugs 11.7 x 4.5 mm output
Thermal resistance: 0.8 °C/W junction to case
LED indicator: LED, green input
IP degree of protection: IP20
Safety reliability data: MTTFd = 1875.9 years, B10d = 1731395
Net Weight: 3.15 oz (89.2 g)
Device presentation: Complete product
Ambient Air Temperature for Operation: -40…176 °F (-40…80 °C)
Ambient Air Temperature for Storage: -40…257 °F (-40…125 °C)
Pollution degree: 2
Overvoltage category: III
Product Certifications: CSA, UL, CE, EAC
Marking: CSA, CE, EAC, UL
standards: UL 508, CSA C22.2 No 14-13, EN/IEC 62314, EN/IEC 60950-1
Category: 22375-INTERFACE MODULE(ABA,R,S)
Discount Schedule: CP2
GTIN: 3606485441856
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.50 in (3.8 cm)
Package 1 Width: 1.89 in (4.8 cm)
Package 1 Length: 2.56 in (6.5 cm)
Package 1 Weight: 3.42 oz (97.0 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 30
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 5.91 in (15.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 7.21 lb(US) (3.27 kg)
