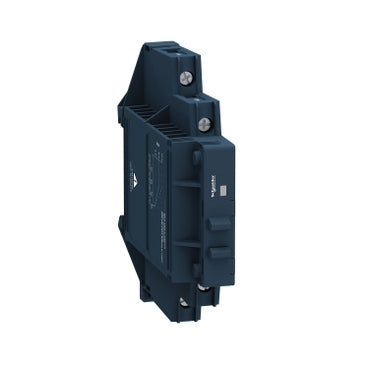

SSM1A112F7 | Solid state modular relay, Harmony,12A, DIN rail mount, zero voltage switching, input 90…140V AC, output 24...280V AC | Square D by Schneider Electric

Brand: Square DSKU: SSM1A112F7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SSM1A112F7

Jump to: Overview & Specifications Reviews

Overview Details for SSM1A112F7

Solid state modular relay, Harmony,12A, DIN rail mount, zero voltage switching, input 90…140V AC, output 24...280V AC

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 90V to 140V AC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product: Harmony Solid State Relays
Product or Component Type: Solid state relay up to 20 A
Device short name: SSM
Number of channels: 1
Number of phases: 1 phase
Output switching mode: Zero voltage switching
Mounting Support: Symmetrical DIN rail
Line Rated Current: 12 A
output voltage: 24...280 V AC
tightening torque: 0.5...0.8 N.m for input, 0.5...0.8 N.m for output
connections - terminals: Screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input, Screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
maximum capacitance: 10 pF for input/output
insulation resistance: 1000 MOhm at 500 V DC
local signalling: for input status LED (green)
minimum switching voltage: 90 V AC turn-on
maximum switching voltage: 10 V AC turn-off
Solid state output type: SCR output, Zero voltage switching
Load current: 0.15…12 A
transient overvoltage: 600 V
surge current: 715 A 16.6 ms, 750 A 20 ms
maximum voltage drop: <1.3 V on-state
Maximum Horse Power Rating: 0.33 hp 104 °F (40 °C) 240 V AC
maximum I²t for fusing: 2560 A².s for 10 ms at 50 Hz, 2330 A².s for 8.33 ms at 60 Hz
maximum leakage current: 0.1 mA off-state
dV/dt: 500 V/µs off-state at maximum voltage
response time: 0.5 cycle (turn-on), 30 ms (turn-off)
power factor: 0.5 (with maximum load)
Overvoltage category: III
Width: 0.71 in (18 mm)
Height: 3.56 in (90.3 mm)
Depth: 3.30 in (83.7 mm)
Net Weight: 0.20 lb(US) (0.09 kg)
flame retardance: V0 conforming to UL 94
dielectric strength: 4 kV AC for input/output, 4 kV AC for input or output to case
Pollution degree: 2
standards: IEC 61000, IEC 60950-1, IEC 62314
Product Certifications: UL, CSA
Marking: CE
IP degree of protection: IP20
Ambient Air Temperature for Operation: -22…176 °F (-30…80 °C)
Ambient Air Temperature for Storage: -22…212 °F (-30…100 °C)
Category: 22375-INTERFACE MODULE(ABA,R,S)
Discount Schedule: CP2
GTIN: 3606480579493
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.98 in (2.5 cm)
Package 1 Width: 3.54 in (9.0 cm)
Package 1 Length: 3.74 in (9.5 cm)
Package 1 Weight: 3.46 oz (98.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 72
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 17.02 lb(US) (7.722 kg)
