QOU350 | Mini circuit breaker, QOU, 50A, 3 pole, 240VAC, 10kA | Square D by Schneider Electric

Brand: Square DSKU: QOU350

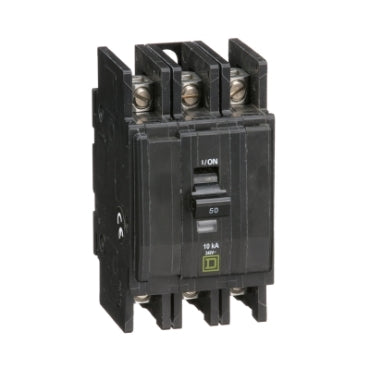

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU350

Jump to: Overview & Specifications Reviews

Overview Details for QOU350

Mini circuit breaker, QOU, 50A, 3 pole, 240VAC, 10kA

QO™ and QOU Miniature Circuit Breakers, QOU350, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 50 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 2.25 in (57.15 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: CSA;IEC;UL Listed
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901418986
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.50 in (8.89 cm)
Package 1 Width: 4.80 in (12.192 cm)
Package 1 Length: 2.60 in (6.604 cm)
Package 1 Weight: 18.40 oz (521.631 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 5
Package 2 Height: 3.50 in (8.89 cm)
Package 2 Width: 13.50 in (34.29 cm)
Package 2 Length: 20.50 in (52.07 cm)
Package 2 Weight: 23.20 lb(US) (10.523 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 840
Package 3 Height: 40.00 in (101.6 cm)
Package 3 Width: 40.00 in (101.6 cm)
Package 3 Length: 48.00 in (121.92 cm)
Package 3 Weight: 966.00 lb(US) (438.17 kg)
Warranty: 18 months
