QO312L125G | Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL | Square D by Schneider Electric

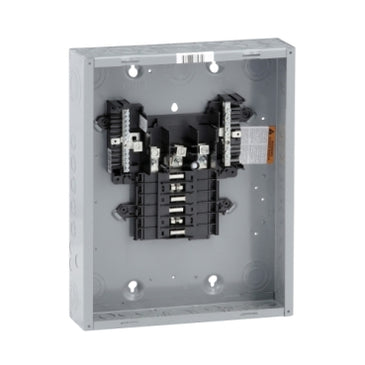

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QO312L125G

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D QO312L125G Documents

Datasheet More Info

Overview

Details for QO312L125G

Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA1, gnd bar, UL

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 12 spaces and 12 circuits. This system provides 125A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.

Specifications

Marketing Trade Name: QO
Product Type: Load Center
Cover Type: Order separately
Tightening Torque: Main lugs 50 lb.in;AWG 6...AWG 2/0;aluminium/copper;Cover 20 lb.in
Load Center Type: Main lugs
Rated Current: 125 A
Number of Spaces: 12
Max Short Circuit Current Rating: 65 kA
Maximum Number of Single Pole Circuits: 12
Maximum Number of Tandem Breakers: 0
Number of Phases: 3 phase
Voltage Rating: 208Y/120 V AC;240/120 V delta AC;240 V delta AC
Wire Size: AWG 6...AWG 2/0 aluminium/copper
Ground Bar: Grounding bar included (not installed)
Electrical Connection: Lugs
Wiring Configuration: 3-wire;4-wire
Busbar Material: Tin plated copper busbar
Enclosure Material: Welded sheet steel
Surface Finish: Baked enamel Gray
Box Number: 6
Height: 17.91 in (455 mm)
Width: 14.25 in (362 mm)
Enclosure Rating: NEMA 1 indoor
Ambient Air Temperature for Operation: 23 °F (-5 °C);104 °F (40 °C)
Product Certifications: UL Listed
Category: 00011-QO 3PH LOAD CENTER;INDOOR
Discount Schedule: DE3
GTIN: 785901295037
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.30 in (16.002 cm)
Package 1 Width: 16.50 in (41.91 cm)
Package 1 Length: 19.20 in (48.768 cm)
Package 1 Weight: 11.00 lb(US) (4.99 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 54
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 596.21 lb(US) (270.438 kg)
Warranty: 18 months
