QO120PCAFI | Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, combo arc fault, plug on neutral, plug in mount | Square D by Schneider Electric

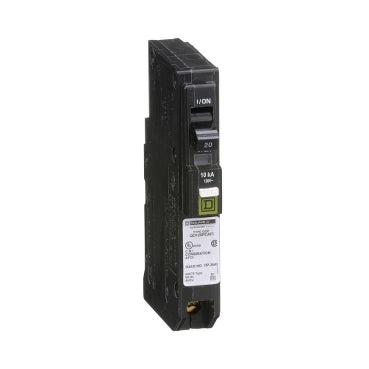

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO120PCAFI
Overview
Details for QO120PCAFI
Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, combo arc fault, plug on neutral, plug in mount
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a combination arc fault with plug on neutral. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 20 A
- Voltage Rating
- 120 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 1P
- Circuit Breaker Type
- PoN combination ARC-fault
- Ratings
- HACR rated
- Electrical Connection
- Pressure plate
- Connections Terminals
- Plug-on neutral
- Interrupt Rating
- 10 kA 120 V AC 50/60 Hz
- Number of Panel Spaces
- 1
- Wire Size
- AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
- Height
- 4.76 in (121 mm)
- Width
- 0.75 in (19 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.55 lb(US) (0.249 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 06303-QO SINGLE POLE ARC FAULT CIRCUIT BREAKER
- Discount Schedule
- DE2A
- GTIN
- 785901737186
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.00 in (2.54 cm)
- Package 1 Width
- 4.00 in (10.16 cm)
- Package 1 Length
- 5.00 in (12.7 cm)
- Package 1 Weight
- 8.80 oz (249.476 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 1
- Package 2 Height
- 4.00 in (10.16 cm)
- Package 2 Width
- 4.00 in (10.16 cm)
- Package 2 Length
- 1.00 in (2.54 cm)
- Package 2 Weight
- 8.16 oz (231.332 g)
- Unit Type of Package 3
- CAR
- Number of Units in Package 3
- 52
- Package 3 Height
- 4.00 in (10.16 cm)
- Package 3 Width
- 13.60 in (34.544 cm)
- Package 3 Length
- 20.80 in (52.832 cm)
- Package 3 Weight
- 26.55 lb(US) (12.043 kg)
- Warranty
- 18 months
