DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

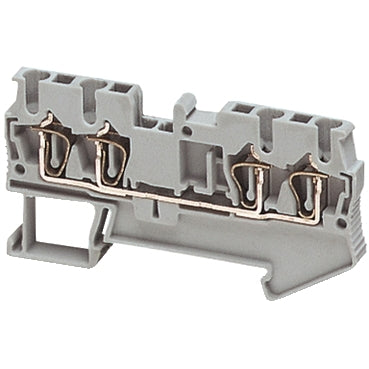

SPRING TERMINAL, FEED THROUGH, 4 POINTS, 2,5MM², GREY

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 192A conforming to EN/IEC 60947-7-1 and 192A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Specifications

Range: Linergy
Product name: Linergy TR
Product or Component Type: Terminal block
Device short name: TRR
Accessory / separate part category: Connection accessory
Terminal block type: Passthrough
Terminal block level: 1
Mounting Mode: Clip-on
Nominal cross section: 0.00 in² (2.5 mm²)
Length: 2.83 in (72 mm)
color: Gray
Quantity per Set: Set of 50
Width: 0.20 in (5.2 mm)
Height: 1.44 in (36.5 mm)
connections - terminals: 2 x spring terminal downstream, 2 x spring terminal upstream
number of connections: 4
Connection position: Top
Number of measurement input: 2
cable cross section: 0.00…0.00 in² (0.08…2.5 mm²), flexible without cable end, 0.00…0.01 in² (0.08…4 mm²), solid with cable end, 0.00…0.00 in² (0.2…2.5 mm²), flexible with cable end, 0.00…0.01 in² (0.08…4 mm²), solid without cable end
Wire stripping length: 0.39 in (10 mm)
tool type: Connection flat screwdriver, Disconnection flat screwdriver
[Ue] rated operational voltage: 600 V CSA, 800 V EN/IEC 60947-7-1, 600 V cURus
Line Rated Current: 20 A CSA, 20 A cURus, 24 A EN/IEC 60947-7-1
Material: Polyamide 6/6 insulating case, Copper alloy connector and screw, Copper alloy commoning link, Chromium-nickel steel spring
dielectric loss: 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
dielectric constant: 3.7 at 1 MHz
resistivity: 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
surface resistance: 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
creep resistance: 500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
flame retardance: V0 0.03 in (0.8 mm) UL 94
Net Weight: 0.30 oz (8.5 g)
range compatibility: Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Product Compatibility: Spacial enclosures
Product Certifications: CSA, IEC-Ex, LR, EAC, cURus, DNV, ATEX, GL, VDE
dielectric strength: 1000 V IEC 60243-1
ambient air temperature for operation: -40…266 °F (-40…130 °C) IEC 60216-1, -40…266 °F (-40…130 °C) VDE 0304-T21
Category: 21715-IEC TERMINAL BLOCKS-NSY,AM1,DF6,GK1
Discount Schedule: CP5
GTIN: 3606480532580
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.77 in (4.500 cm)
Package 1 Width: 3.54 in (9.000 cm)
Package 1 Length: 10.83 in (27.500 cm)
Package 1 Weight: 0.32 oz (9.000 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 50
Package 2 Height: 1.77 in (4.500 cm)
Package 2 Width: 3.54 in (9.000 cm)
Package 2 Length: 10.83 in (27.500 cm)
Package 2 Weight: 17.14 oz (486.000 g)
Unit Type of Package 3: P06
Number of Units in Package 3: 8400
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 23.62 in (60.000 cm)
Package 3 Length: 31.50 in (80.000 cm)
Package 3 Weight: 213.05 lb(US) (96.640 kg)
Warranty: 18 months
