NSYS3X6625 | Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 600x600x250mm, IP66 | Square D by Schneider Electric

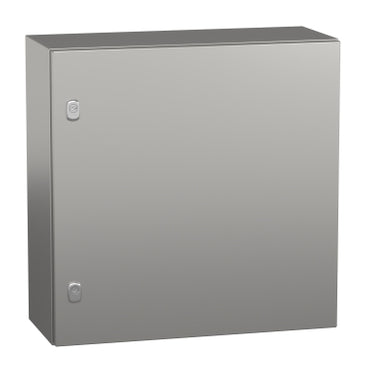

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYS3X6625

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D NSYS3X6625 Documents

Datasheet More Info

Overview

Details for NSYS3X6625

Wall mounted enclosure, Spacial S3X, stainless steel 304L, plain door, 600x600x250mm, IP66

Specifications

range: Spacial
product name: Spacial S3X
enclosure type: Multi-purpose
category: Compact enclosure
nominal height: 23.62 in (600 mm)
nominal width: 23.62 in (600 mm)
nominal depth: 9.84 in (250 mm)
product installation: Wall-mounting
device composition: 1 body;1 door;2 lock door;2 perforated vertical profile drilled door
body type: Single piece body;cross-shaped structure;Gutter shaped front rail
door type: Solid
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: 2 points lock;3 mm double-bar
mounting plate description: Without mounting plate
type of gland plate: Without gland plate
accessibility for operation: Front
removable parts: Door by hinges
material: Body and door stainless steel 304L;Lock zamak;Hinge stainless steel
surface finish: Body and door Scotch-Brite® brushed;Lock chromium plated
Net Weight: 30.65 lb(US) (13.902 kg)
Standards: IEC 62208
Product Certifications: UL 508 type A;CAN/CSA 22
IP degree of protection: IP66 IEC 60529
IK degree of protection: IK10 IEC 62262
environmental characteristic: Corrosive;Specific hygiene
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 3606480155246
Returnability: No
Country of origin: BG
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.43 in (26.5 cm)
Package 1 Width: 24.02 in (61.0 cm)
Package 1 Length: 24.21 in (61.5 cm)
Package 1 Weight: 30.65 lb(US) (13.902 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 18
Package 2 Height: 77.95 in (198.0 cm)
Package 2 Width: 39.37 in (100.0 cm)
Package 2 Length: 48.03 in (122.0 cm)
Package 2 Weight: 597.45 lb(US) (271.0 kg)
Warranty: 18 months
