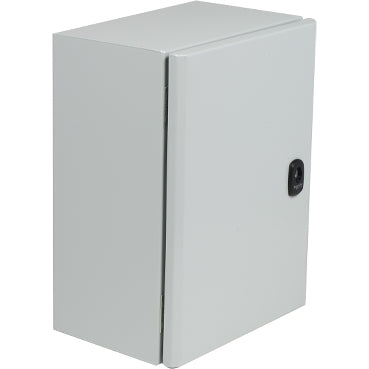

NSYS3DC7525 | Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 700x500x250mm, IP66, IK10 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYS3DC7525
Overview
Details for NSYS3DC7525
Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 700x500x250mm, IP66, IK10
Specifications
- range
- Spacial
- product name
- Spacial S3DC
- Application
- Multi-purpose
- Category
- Compact enclosure
- enclosure nominal height
- 27.56 in (700 mm)
- enclosure nominal width
- 19.69 in (500 mm)
- enclosure nominal depth
- 9.84 in (250 mm)
- door type
- Solid
- mounting plate description
- Without mounting plate
- type of gland plate
- Without gland plate
- installation accessory type
- Wall-mounting
- device composition
- 1 body;1 door;1 lock
- body type
- Gutter-shaped front profile double sheet thickness;Single piece body
- number of doors
- Front face 1
- door opening side
- Reversible 120 °)
- lock type
- 3 points lock;screw driver insert
- accessibility for operation
- Front
- removable parts
- Door by hinges
- material
- steel
- surface finish
- epoxy-polyester powder
- color
- Gray RAL 7035)
- Standards
- IEC 62208
- Product Certifications
- UL
- Net Weight
- 35.27 lb(US) (16 kg)
- NEMA Degree of Protection
- NEMA 4X/13
- IK degree of protection
- IK10 IEC 62262
- IP degree of protection
- IP66 IEC 60529
- Category
- 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
- Discount Schedule
- ES1
- GTIN
- 3606480314124
- Returnability
- Yes
- Country of origin
- ES
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.81 in (30.0 cm)
- Package 1 Width
- 20.87 in (53.0 cm)
- Package 1 Length
- 31.10 in (79.0 cm)
- Package 1 Weight
- 35.27 lb(US) (16.0 kg)
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 12
- Package 2 Height
- 68.11 in (173.0 cm)
- Package 2 Width
- 39.37 in (100.0 cm)
- Package 2 Length
- 47.24 in (120.0 cm)
- Package 2 Weight
- 456.36 lb(US) (207.0 kg)
- Warranty
- 18 months
