NSYS3DC5520 | Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 500x500x200mm, IP66, IK10 | Square D by Schneider Electric

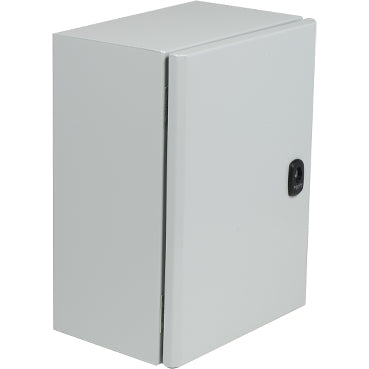

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYS3DC5520

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D NSYS3DC5520 Documents

Datasheet More Info

Overview

Details for NSYS3DC5520

Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 500x500x200mm, IP66, IK10

Specifications

range: Spacial
product name: Spacial S3DC
Application: Multi-purpose
Category: Compact enclosure
enclosure nominal height: 19.69 in (500 mm)
enclosure nominal width: 19.69 in (500 mm)
enclosure nominal depth: 7.87 in (200 mm)
door type: Solid
mounting plate description: Without mounting plate
type of gland plate: Without gland plate
installation accessory type: Wall-mounting
device composition: 1 body;1 door;1 lock
body type: Single piece body;Gutter-shaped front profile double sheet thickness
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: Screw driver insert lock
accessibility for operation: Front
removable parts: Door by hinges
material: steel
surface finish: epoxy-polyester powder
color: Gray RAL 7035)
Standards: IEC 62208
Product Certifications: UL
Net Weight: 22.93 lb(US) (10.4 kg)
NEMA Degree of Protection: NEMA 4X/13
IK degree of protection: IK10 IEC 62262
IP degree of protection: IP66 IEC 60529
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 3606480314056
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.04 in (25.5 cm)
Package 1 Width: 20.47 in (52.0 cm)
Package 1 Length: 23.62 in (60.0 cm)
Package 1 Weight: 22.93 lb(US) (10.4 kg)
Unit Type of Package 2: P12
Number of Units in Package 2: 18
Package 2 Height: 75.59 in (192.0 cm)
Package 2 Width: 31.50 in (80.0 cm)
Package 2 Length: 47.24 in (120.0 cm)
Package 2 Weight: 445.33 lb(US) (202.0 kg)
Warranty: 18 months
