NSYS3DC4315 | Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 400x300x150mm, IP66, IK10 | Square D by Schneider Electric

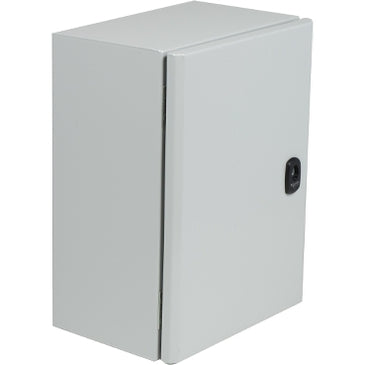

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYS3DC4315

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D NSYS3DC4315 Documents

Datasheet More Info

Overview

Details for NSYS3DC4315

Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 400x300x150mm, IP66, IK10

Specifications

range: Spacial
product name: Spacial S3DC
Application: Multi-purpose
Category: Compact enclosure
enclosure nominal height: 15.75 in (400 mm)
enclosure nominal width: 11.81 in (300 mm)
enclosure nominal depth: 5.91 in (150 mm)
door type: Solid
mounting plate description: Without mounting plate
type of gland plate: Without gland plate
installation accessory type: Wall-mounting
device composition: 1 body;1 door;1 lock
body type: Single piece body;Gutter-shaped front profile double sheet thickness
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: Screw driver insert lock
accessibility for operation: Front
removable parts: Door by hinges
material: steel
surface finish: epoxy-polyester powder
color: Gray RAL 7035)
Standards: IEC 62208
Product Certifications: UL
Net Weight: 11.90 lb(US) (5.4 kg)
NEMA Degree of Protection: NEMA 4X/13
IK degree of protection: IK10 IEC 62262
IP degree of protection: IP66 IEC 60529
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 3606480314001
Returnability: Yes
Country of origin: ES
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.07 in (20.5 cm)
Package 1 Width: 12.60 in (32.0 cm)
Package 1 Length: 19.29 in (49.0 cm)
Package 1 Weight: 11.90 lb(US) (5.4 kg)
Unit Type of Package 2: PAM
Number of Units in Package 2: 56
Package 2 Height: 84.25 in (214.0 cm)
Package 2 Width: 39.37 in (100.0 cm)
Package 2 Length: 47.24 in (120.0 cm)
Package 2 Weight: 707.68 lb(US) (321.0 kg)
Warranty: 18 months
