NSYPTDS5 | Spacial - Flush Mounting drive installation kit - Altivar Process size S5 - IP55 | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYPTDS5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D NSYPTDS5 Documents

Datasheet More Info

Overview

Details for NSYPTDS5

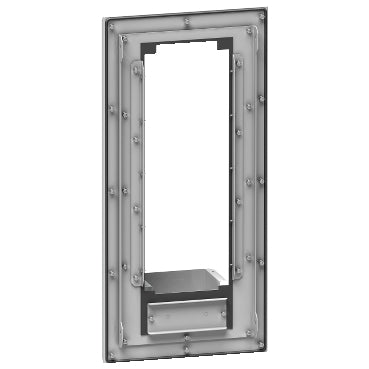

Spacial - Flush Mounting drive installation kit - Altivar Process size S5 - IP55

Specifications

Range: Spacial
Product or Component Type: Drive flush mounting kit
accessory category: Mounting and fixing accessory
Product Specific Application: Process and utilities
range compatibility: Altivar variable speed drive ATV630, Altivar variable speed drive ATV930, Spacial SF and SM enclosures, Altivar variable speed drive ATV340
compatibility for Altivar Process 630-930, size:: 5
motor power kW: 30 kW 220/240 V, 37 kW 220/240 V, 45 kW 220/240 V, 55 kW 380/480 V, 75 kW 380/480 V, 90 kW 380/480 V
mounting location: 1 back of enclosure mounting plate, 2 inside enclosure
kit composition: 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts, 1 x fixing accessories, 1 x drilling template, 1 x instruction sheet, 1 x edge protector profile, plastic, 1 x fan support, 1 x cover for fan protection
permanent permissible load: 128.97 lb(US) (58.5 kg)
color: Gray RAL 7035)
height: External 38.39 in (975 mm), Cut-out 36.22 in (920 mm)
width: Cut-out 14.96 in (380 mm), External 16.81 in (427 mm)
depth: Wall-enclosure separation 8.09 in (205.5 mm)
Net Weight: 24.44 lb(US) (11.086 kg)
services: Configuration of enclosure pre-drilled back, Factory installation drive flush mounting kit
IP degree of protection: IP55 conforming to IEC 60529
Category: 22277-ATV930 FRAMES 3 & 4
Discount Schedule: CP4E
GTIN: 3606485442488
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.91 in (15.0 cm)
Package 1 Width: 17.72 in (45.0 cm)
Package 1 Length: 39.76 in (101.0 cm)
Package 1 Weight: 24.44 lb(US) (11.086 kg)
Unit Type of Package 2: PAM
Number of Units in Package 2: 20
Package 2 Height: 65.35 in (166.0 cm)
Package 2 Width: 39.37 in (100.0 cm)
Package 2 Length: 47.24 in (120.0 cm)
Package 2 Weight: 518.09 lb(US) (235.0 kg)
