NSYCCOTHD | ClimaSys CC - double thermostat 250V - range of temperature 0…60°C - 1NO/NC - °C | Square D by Schneider Electric

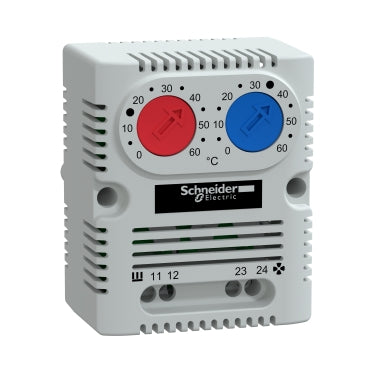

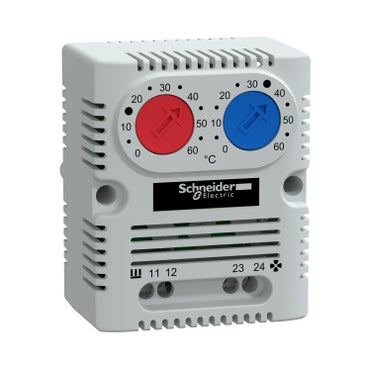

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYCCOTHD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D NSYCCOTHD Documents

Datasheet More Info

Overview

Details for NSYCCOTHD

ClimaSys CC - double thermostat 250V - range of temperature 0…60°C - 1NO/NC - °C

ClimaSys CC Double thermostat. 250V AC. 68 x 56 x 44 mm. Sensor Bimetal with 1 NO/NC contact type. 1 heating function and 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.

Specifications

range: ClimaSys
product name: ClimaSys CC
Product or Component Type: Double thermostat
temperature setting range: 32…140 °F (0…60 °C)
Information Displayed: Temperature in °C
input voltage: 250 V
Sensor Type: Bimetal
contacts type and composition: 1 NO/NC
contact resistance: 10 mOhm
Service Life in Cycles: 100000 cycles
maximum switching capacity: 2 A 120...250 V AC inductive 0.6;10 A 250 V AC resistive;15 A 120 V AC resistive;30 W DC
electrical connection: 4 terminals 2.5 mm²
Mounting Mode: Clipped
height: External 2.68 in (68 mm)
width: External 2.20 in (56 mm)
depth: External 1.73 in (44 mm)
Net Weight: 1.41 oz (40 g)
Mounting Location: Spacial upright;On mounting plate;35 mm DIN rail;Cross rails
Ambient air temperature for operation: -4…176 °F (-20…80 °C)
IP Degree of Protection: IP20
hysteresis: 7 %
number of outputs: 1 heating function;1 ventilation function
Material: PC
Color: Light gray
flame retardance: Self-extinguishing conforming to UL94 (material V0)
Product Certifications: UL
Category: 80036-ENCLOSURE SYSTEMS ACCESSORIES
Discount Schedule: ES1
GTIN: 3606480152511
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.36 in (6 cm)
Package 1 Width: 2.76 in (7 cm)
Package 1 Length: 3.15 in (8 cm)
Package 1 Weight: 3.67 oz (104 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 75
Package 2 Height: 10.43 in (26.5 cm)
Package 2 Width: 12.80 in (32.5 cm)
Package 2 Length: 16.34 in (41.5 cm)
Package 2 Weight: 19.72 lb(US) (8.946 kg)
Unit Type of Package 3: P12
Number of Units in Package 3: 2250
Package 3 Height: 59.06 in (150 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 47.24 in (120 cm)
Package 3 Weight: 591.68 lb(US) (268.38 kg)
Warranty: 18 months
