METSECTSP5A4160U | CT | SplitCore | Instrument Grade | 5.5in x 2.5in ID | 1600A to 5A | Schneider Electric

1600 A Input 5 A Output Current Transformer, Split-Core, 5-1/2 x 2-1/2 in (Large)

Brand: Schneider ElectricSKU: METSECTSP5A4160U

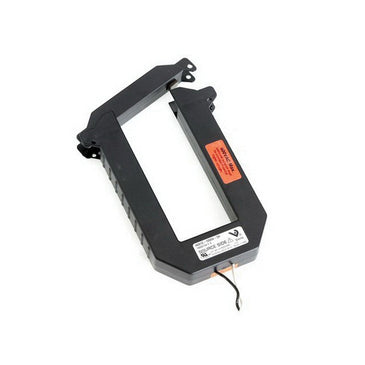

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for METSECTSP5A4160U

Item Number	METSECTSP5A4160U
Brand	Schneider Electric
Accuracy	+/-1% of Reading from 10 to 100% of Rated Current
Current Core	Split Core
Current Measurement Range	0 - 1600 A
Dimensions	6.0" (151 mm) W x 7.9" (201 mm) L x 1.2" (30 mm) H
Environmental Conditions	Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F
Frequency Rating	50 - 60 Hz
Mounting	Split-Core
Operating Temperature	5 - 140 °F
Output Specifications	5 A
Product Type	Current Transformer
Range	H681X-A
Sensor	Current Sensor (Hawkeye)
