Details for M9V11263

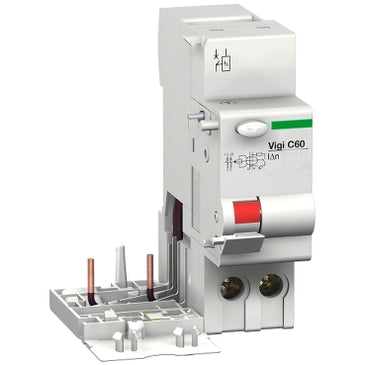

Multi9 - Vigi C60 - 2P - 63A - class AC - 230/400 V - 30mA

This Vigi C60 is a modular add-on residual current devices. It is a 2P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 230VAC or 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 87mm x (D) 74mm. The weight is 150g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.

Specifications

Range: Multi9
Product or Component Type: Add-on residual current devices
Device short name: Vigi C60
range compatibility: Multi 9 (Multi 9 C60) C60N, Multi 9 (Multi 9 C60) C60L, Multi 9 (Multi 9 C60) C60H, Multi 9 (Multi 9 C60) C60CTRL
Poles description: 2P
Line Rated Current: 63 A EN/IEC 61009-1
Network type: AC
Network Frequency: 50 Hz
[Ue] rated operational voltage: 230/240 V AC 50 Hz
earth-leakage sensitivity: 30 mA EN/IEC 61009-1
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC
9 mm pitches: 4
Residual current tripping technology: Voltage independent
[Ui] rated insulation voltage: 500 V AC 50 Hz EN/IEC 61009-1
[Uimp] rated impulse withstand voltage: 4 kVEN/IEC 61009-1
Local signalling: Fault indication
Mounting Mode: Clip-on
Mounting Support: DIN rail
Electrical connection to mcb: By screws
Height: 3.43 in (87 mm)
Width: 1.42 in (36 mm)
Depth: 2.91 in (74 mm)
Net Weight: 5.29 oz (150 g)
color: Gray
connections - terminals: Tunnel type terminal bottom) 0.00…0.05 in² (1…35 mm²) - rigid, Tunnel type terminal bottom) 0.00…0.04 in² (1…25 mm²) - flexible, Tunnel type terminal bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
wire stripping length: 0.55 in (14 mm) bottom
tightening torque: 30.98 lbf.in (3.5 N.m) bottom
Standards: EN/IEC 61009-1, EN/IEC 61009-2-1
IP degree of protection: IP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529
pollution degree: 3 IEC 61009
electromagnetic compatibility: 8/20 µs impulse withstand, 250 A EN/IEC 61009-1
tropicalisation: 2 IEC 60068-1
relative humidity: 95 % 131 °F (55 °C)
ambient air temperature for operation: 23…140 °F (-5…60 °C)
Ambient Air Temperature for Storage: -40…140 °F (-40…60 °C)
Category: 00908-C60N SUPPLEMENTARY PROTECTORS
Discount Schedule: DE2
GTIN: 3606480684548
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.07 in (7.8 cm)
Package 1 Width: 3.07 in (7.8 cm)
Package 1 Length: 3.74 in (9.5 cm)
Package 1 Weight: 7.30 oz (207.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 27
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 13.40 lb(US) (6.076 kg)
Warranty: 18 months
