LXM28AU07M3X | motion servo drive, Lexium 28, single and three phase 200...230 V, 750 W | Square D by Schneider Electric

Brand: Square DSKU: LXM28AU07M3X

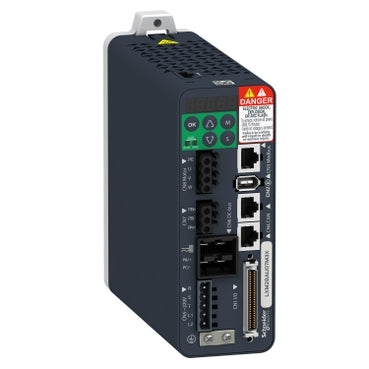

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LXM28AU07M3X

Jump to: Overview & Specifications Reviews

Overview Details for LXM28AU07M3X

motion servo drive, Lexium 28, single and three phase 200...230 V, 750 W

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features a HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 13.5A at 220V, a power of 750W/1HP and a continuous power of 750W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for CANopen, CANmotion integrated communication interfaces. Physical interface is RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (130mm, 1 motor stacks) at 500W, servo motor BCH2 (80mm, 2 motor stacks) at 750W and servo motor BCH2 (130mm, 1 motor stacks) at 600W. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Specifications

Range of Product: Lexium 28
Product or Component Type: Motion servo drive
device short name: LXM28A
format of the drive: Compact housing
line current: 6 A 181.8 % 220 V;single phase;6 A 160.6 % 220 V;three phase
Phase: Single phase;Three phase
[Us] rated supply voltage: 220 V - 10...15 %)three phase;220 V - 20...15 %)single phase
supply voltage limits: 200…255 V three phase;170…255 V single phase
supply frequency: 50/60 Hz - 5...5 %
Network Frequency: 47.5...63 Hz
EMC filter: Without EMC filter
continuous output current: 4.5 A 16 kHz
output current 3s peak: 13.5 A 220 V
continuous power: 750 W 220 V
nominal power: 0.75 kW 220 V 16 kHz
switching frequency: 16 kHz
overvoltage category: III
maximum leakage current: 1.3 mA
output voltage: <= power supply voltage
electrical isolation: Between power and control
type of cable: Shielded motor cable 32…131 °F (0…55 °C)) copper
electrical connection: Spring terminal 0.82...1 mm²;AWG 18 L1-L2);Spring terminal 0.82...1 mm²;AWG 18 R;S;T);Spring terminal 0.82...1 mm²;AWG 18 U;V;W;PE);Spring terminal 0.82...1 mm²;AWG 18 PA/+;PBe)
discrete input number: 8 programmable CN1);1 pulse train input (PTI) CN1);2 fast capture CN1);1 safety function STO CN9)
discrete input voltage: 24 V DC logic
discrete input logic: Positive or negative CN1)
discrete output number: 5 logic output CN1)12...24 V DC;1 pulse train output (PTO) CN1)
discrete output voltage: 12...24 V DC
discrete output logic: Positive or negative CN1)
analogue input number: 2
absolute accuracy error: 0.1 %
analogue input type: V-REF voltage analog input - 10...10 V 10 kOhm 14 bits;T-REF voltage analog input
control signal type: Servo motor encoder feedback CN2
protection type: Against reverse polarity inputs signal;Against short-circuits outputs signal;Overcurrent motor;Overvoltage motor;Undervoltage motor;Overheating motor;Overload motor;Overspeed motor
safety function: STO (safe torque off);Integrated
safety level: SIL 2 IEC 61800-5-2 2007;SIL 2 IEC 61508-1 2010;PL d/category 3 EN/ISO 13849-1 2008;SIL 2 EN/ISO 13849-1 2009/AC;SIL 2 EN 60204-1 2006;SIL 2 EN 60204-1 2009/A1;SIL 2 EN 60204-1 2010/AC;SIL 2 IEC 62061 2012
communication interface: CANopen;Integrated;CANmotion;Integrated
connector type: RJ45 CN4)CANopen;CANmotion
method of access: Slave
transmission rate: 250 kbit/s 328.08…820.21 ft (100…250 m) CANopen;CANmotion;500 kbit/s 13.12…328.08 ft (4…100 m) CANopen;CANmotion;1 Mbit/s 13.12 ft (4 m) CANopen;CANmotion
number of addresses: 1…127 CANopen;CANmotion
physical interface: RS485 Modbus Serial line slave
status LED: 1 LED (Red) charge;1 LED (Green) RUN;1 LED (Red) error
signalling function: Servo status and fault codes five 7-segment display units
Marking: CSA;CULus;CE
type of cooling: Integrated fan
operating position: Vertical
product compatibility: Servo motor BCH2 5.12 in (130 mm);1 500 W;Servo motor BCH2 3.15 in (80 mm);2 750 W;Servo motor BCH2 5.12 in (130 mm);1 600 W
Width: 2.17 in (55 mm)
Height: 5.91 in (150 mm)
Depth: 5.75 in (146 mm)
Net Weight: 2.20 lb(US) (1 kg)
output current 3s peak 2: 13.5 A 220 V
output current 3s peak 3: 13.5 A 220 V
electromagnetic compatibility: Conducted emission level 3category C3 EN/IEC 61800-3
Standards: EN/IEC 61800-5-1
Product Certifications: CE;cULus;CSA
IP degree of protection: IP20
vibration resistance: 3M4 3 mm 9…200 Hz)IEC 60721-3-3
shock resistance: 10 gn;type I IEC 60721-3-3
relative humidity: 5…95 % without condensation
Ambient air temperature for operation: 32…131 °F (0…55 °C)
Ambient Air Temperature for Storage: -13…149 °F (-25…65 °C)
operating altitude: <= 3280.84 ft (1000 m) without derating;> 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Category: 18262-LEXIUM 23/28 SERVO DRIVES
Discount Schedule: PC51
GTIN: 3606480711794
Returnability: No
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.02 in (7.679 cm)
Package 1 Width: 9.03 in (22.941 cm)
Package 1 Length: 9.33 in (23.694 cm)
Package 1 Weight: 2.89 lb(US) (1.31 kg)
Unit Type of Package 2: S03
Number of Units in Package 2: 5
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.77 in (29.9 cm)
Package 2 Length: 15.67 in (39.8 cm)
Package 2 Weight: 15.87 lb(US) (7.2 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 40
Package 3 Height: 31.50 in (80 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 147.81 lb(US) (67.044 kg)
