Documents: LUCA1XBL

Datasheet More Info

LUCA1XBL | Standard control unit, TeSys Ultra, 0.35A to 1.4A, 3P motors, thermal magnetic protection, class 10, coil 24VDC | Square D by Schneider Electric

Brand: Square DSKU: LUCA1XBL

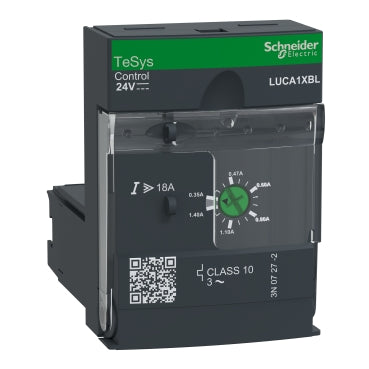

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LUCA1XBL

Jump to: Overview & Specifications Reviews

Overview Details for LUCA1XBL

Standard control unit, TeSys Ultra, 0.35A to 1.4A, 3P motors, thermal magnetic protection, class 10, coil 24VDC

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides full protection to motors with a rated current Ir 0.35-1.4A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Range of Product: TeSys Ultra
Product name: TeSys Ultra
Device short name: LUCA
Product or Component Type: Standard control unit
Device Application: Motor control, Motor protection
Product Specific Application: Basic protection requirements for motor starters: overload and short-circuit
main function available: Protection against overload and short-circuit, Protection against phase failure and phase imbalance, Manual reset, Earth fault protection
product compatibility: Power base LUB12, Power base LUB32, Power base LUB38, Power base LUB120, Power base LUB320, Power base LUB380, Reversing contactor breaker LU2B12BL, Reversing contactor breaker LU2B32BL, Reversing contactor breaker LU2B38BL
[Ue] rated operational voltage: 690 V AC
network frequency: 40...60 Hz
load type: 3-phase motor self-cooled
Utilisation category: AC-44, AC-43, AC-41
motor power kW: 0.25 kW 400...440 V AC 50/60 Hz
rated motor current adjustment range: 0.35…1.4 A
thermal overload class: Class 10 40…60 Hz -13…158 °F (-25…70 °C) IEC 60947-6-2, Class 10 40…60 Hz -13…158 °F (-25…70 °C) UL 508
tripping threshold: 14.2 x Ir +/- 20 %
phase failure sensitivity: Yes
[Uc] control circuit voltage: 24 V DC
control circuit voltage limits: 20...27 V DC 24 V in operation, 14.5 V DC 24 V drop-out
typical current consumption: 130 mA 24 V DC I maximum while closing with LUB12, 220 mA 24 V DC I maximum while closing with LUB32, 220 mA 24 V DC I maximum while closing with LUB38, 60 mA 24 V DC I rms sealed with LUB12, 80 mA 24 V DC I rms sealed with LUB32, 80 mA 24 V DC I rms sealed with LUB38
heat dissipation: 2 W control circuit with LUB12, 3 W control circuit with LUB32, 3 W control circuit with LUB38
operating time: 35 ms opening with LUB12 control circuit, 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit, 70 ms closing with LUB12 control circuit, 70 ms closing with LUB32 control circuit, 70 ms closing with LUB38 control circuit
standards: EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier
Product Certifications: CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
[Ui] rated insulation voltage: 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-6-2
safe separation of circuit: 400 V SELV between the control and auxiliary circuits IEC 60947-1, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
fixing mode: Plug-in front face)
Width: 1.77 in (45 mm)
Height: 2.60 in (66 mm)
Depth: 2.36 in (60 mm)
Net Weight: 0.30 lb(US) (0.135 kg)
Compatibility code: LUCA
IP degree of protection: IP20 front panel and wired terminals IEC 60947-1, IP20 other faces IEC 60947-1, IP40 front panel outside connection zone IEC 60947-1
protective treatment: TH IEC 60068
ambient air temperature for operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
operating altitude: 6561.68 ft (2000 m)
fire resistance: 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12
shock resistance: 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
vibration resistance: 2 gn 5…300 Hz power poles open IEC 60068-2-6, 4 gn 5…300 Hz power poles closed IEC 60068-2-6
resistance to electrostatic discharge: 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2
resistance to radiated fields: 9.14 V/m (10 V/m) 3 IEC 61000-4-3
resistance to fast transients: 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
immunity to radioelectric fields: 10 V IEC 61000-4-6
immunity to microbreaks: 3 ms
immunity to voltage dips: 70 % / 500 ms IEC 61000-4-11
Category: 22397-TESYS U - CNTRL MOD(LUCA,LUCD)
Discount Schedule: I11
GTIN: 3389110363821
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.09 in (5.3 cm)
Package 1 Width: 3.15 in (8.0 cm)
Package 1 Length: 3.98 in (10.1 cm)
Package 1 Weight: 4.16 oz (118.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 23
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 6.63 lb(US) (3.009 kg)
Warranty: 18 months
