LP4K090087BW3 | Contactor, TeSys K, 4P, 2 NO + 2 NC, AC-1, lt or eq to 440V, 20A, 24VDC coil | Square D by Schneider Electric

Brand: Square DSKU: LP4K090087BW3

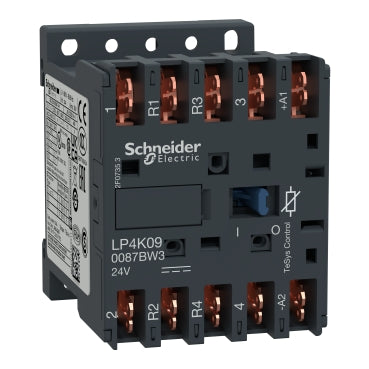

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LP4K090087BW3

Jump to: Overview & Specifications Reviews

Overview Details for LP4K090087BW3

Contactor, TeSys K, 4P, 2 NO + 2 NC, AC-1, lt or eq to 440V, 20A, 24VDC coil

Specifications

Range of Product: TeSys K
range: TeSys
Product or Component Type: Contactor
device short name: LP4K
contactor application: Resistive load
utilisation category: AC-1
poles description: 4P
pole contact composition: 2 NO + 2 NC
[Ie] rated operational current: 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit;16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
coil technology: Built-in bidirectional peak limiting diode suppressor
control circuit voltage limits: Operational 0.7...1.30 Uc 122 °F (50 °C));Drop-out 0.1...0.7 Uc 122 °F (50 °C))
[Ui] rated insulation voltage: Power circuit 600 V UL 508;Power circuit 690 V IEC 60947-4-1;Power circuit 600 V CSA C22.2 No 14
[Uimp] rated impulse withstand voltage: 8 kV
overvoltage category: III
Mounting Support: Plate;Rail
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
[Ue] rated operational voltage: Power circuit 690 V AC 50/60 Hz
[Ith] conventional free air thermal current: 20 A 122 °F (50 °C) power circuit
Irms rated making capacity: 110 A AC power circuit NF C 63-110;110 A AC power circuit IEC 60947
rated breaking capacity: 110 A 415 V IEC 60947;110 A 440 V IEC 60947;80 A 500 V IEC 60947;110 A 220...230 V IEC 60947;110 A 380...400 V IEC 60947;70 A 660...690 V IEC 60947
associated fuse rating: 25 A gG <= 440 V power circuit;25 A aM power circuit
average impedance: 3 mOhm - Ith 20 A 50 Hz power circuit
inrush power in W: 1.8 W 68 °F (20 °C))
hold-in power consumption in W: 1.8 W 68 °F (20 °C)
operating time: 10...20 ms coil de-energisation and NO opening;30...40 ms coil energisation and NO closing;25...35 ms coil energisation and NC opening;15...25 ms coil de-energisation and NC closing
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 30 Mcycles
maximum operating rate: 3600 cyc/h
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.24 in (57 mm)
Net Weight: 0.52 lb(US) (0.235 kg)
Product Certifications: UL;CSA;UKCA
Ambient air temperature for operation: -13…122 °F (-25…50 °C)
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
Category: 22321-CTR;K-LINE;DC;OPEN;NONREV
Discount Schedule: I12
GTIN: 3389110499568
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.70 in (6.858 cm)
Package 1 Width: 2.50 in (6.35 cm)
Package 1 Length: 2.00 in (5.08 cm)
Package 1 Weight: 7.84 oz (222.263 g)
Warranty: 18 months
