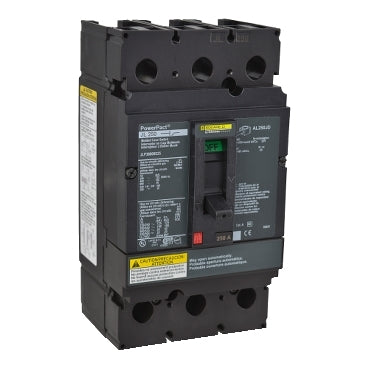

JLP36000S25 | Automatic switch, PowerPacT J, 250A, 3 pole, 600VAC, 50kA, lugs, magnetic | Square D by Schneider Electric

Brand: Square DSKU: JLP36000S25

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to JLP36000S25

Jump to: Overview & Specifications Reviews

Overview Details for JLP36000S25

Automatic switch, PowerPacT J, 250A, 3 pole, 600VAC, 50kA, lugs, magnetic

PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction to, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, NMX, and IEC standards and are CE marked.

Specifications

Product or Component Type: Automatic switch
Range of Product: PowerPact J
trip unit technology: Magnetic
Line Rated Current: 250 A
[Ue] rated operational voltage: 600 V AC;250 V DC
Mounting Mode: Unit mount
poles description: 3P
short-circuit withstand: 125 kA 240 V UL 489;100 kA 480 V UL 489;50 kA 600 V UL 489;20 kA 250 V UL 489
breaking capacity code: L
electrical connection: Lugs load;Terminal nut line
AWG gauge: AWG 3/0...350 kcmil aluminium/copper)
terminal identifier: AL250JD
magnetic tripping current: 3125 A
Height: 7.52 in (191.01 mm)
Width: 4.12 in (104.65 mm)
Depth: 5 in (127.00 mm)
tightening torque: 230.12 lbf.in (26 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
Product Certifications: IEC;CSA;CCC;UL Listed;CE;NMX
Category: 01120-HL;JL UNIT MT BREAKER/SWITCH
Discount Schedule: DE2
GTIN: 785901661023
Returnability: No
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.13 in (13.018 cm)
Package 1 Width: 7.25 in (18.415 cm)
Package 1 Length: 8.44 in (21.433 cm)
Package 1 Weight: 4.82 lb(US) (2.185 kg)
Warranty: 18 months
