HU367R | Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 poles, 500hp, 600VAC/DC, Type 3R | Square D by Schneider Electric

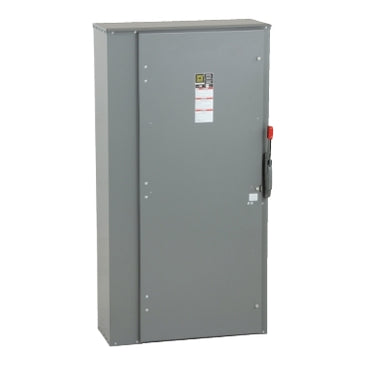

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HU367R

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D HU367R Documents

Datasheet More Info

Overview

Details for HU367R

Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 poles, 500hp, 600VAC/DC, Type 3R

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Specifications

Product: Single Throw Safety Switch
Duty Rating: Heavy duty
Device Application: Heavy application
Disconnect Type: Non-fusible disconnect
Factory Installed Neutral: None
Phase: 3 phase
Number of Poles: 3
Current Rating: 800 A
Voltage Rating: 600 V AC/DC
Enclosure Rating: NEMA 3R galvannealed steel
Motor power hp: 500 hp at 480 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V AC 50-60 Hz for 1 phase motors;500 hp at 600 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V DC
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 3-wire
Wire Size: AWG 3/0...750 kcmil copper or aluminium
tightening torque: 375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)
Depth: 17.75 in (450.85 mm)
Width: 36.62 in (930.15 mm)
Height: 69.13 in (1755.90 mm)
Net Weight: 367.95 lb(US) (166.9 kg)
Certifications: UL listed file E2875
Category: 00054-H&HU SW;NEMA3R;400-1200A
Discount Schedule: DE1
GTIN: 785901442448
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 73.82 in (187.5 cm)
Package 1 Width: 29.88 in (75.9 cm)
Package 1 Length: 37.80 in (96.0 cm)
Package 1 Weight: 342.00 lb(US) (155.129 kg)
Warranty: 18 months
