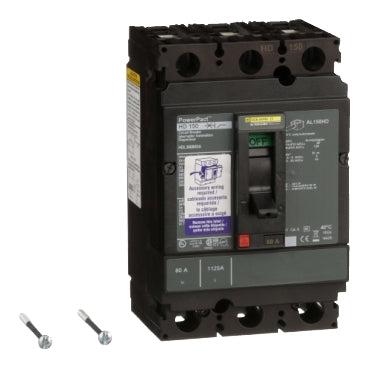

Circuit breaker, PowerPacT H, 80A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%, shunt
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 80A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 120VAC shunt trip. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.Specifications
- range
- PowerPact
- product name
- PowerPact H
- Product or Component Type
- Circuit breaker
- Device Application
- Distribution
- Line Rated Current
- 80 A
- Number of Poles
- 3P
- protected poles description
- 3t
- Control Type
- Toggle
- breaking capacity code
- D
- breaking capacity
- 25 kA 240 V AC 50/60 Hz UL 489;18 kA 480 V AC 50/60 Hz;14 kA 600 V AC 50/60 Hz;20 kA 250 V DC
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz IEC 60947-3
- Network Frequency
- 50/60 Hz
- [Ics] rated service breaking capacity
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2;18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;14 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV IEC 60947-2
- trip unit technology
- Thermal-magnetic
- magnetic tripping current
- 1450 A
- magnetic hold current
- 800 A
- continuous current rating
- 80 %
- [Ui] rated insulation voltage
- 750 V IEC 60947-2
- accessory / separate part type
- Shunt trip 110...130 V AC compartment
- suitability for isolation
- Yes IEC 60947-2
- utilisation category
- Category A
- AWG gauge
- AWG 14...AWG 3/0 aluminium/copper terminal
- local signalling
- Switched off (OFF) 1 trip indicator green)
- mounting mode
- Unit mount lug)
- Mounting Support
- Lug
- electrical connection
- Lugs line;Lugs load
- terminal identifier
- AL150HD
- tightening torque
- 44.25 lbf.in (5 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);123.91 lbf.in (14 N.m) 0.02…0.15 in² (10…95 mm²) (AWG 8...AWG 3/0)
- number of slots
- 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
- Power wire stripping length
- 0.63 in (16 mm)
- Color
- Black
- Height
- 6.42 in (163 mm)
- Width
- 4.09 in (104 mm)
- Depth
- 3.39 in (86 mm)
- Net Weight
- 4.85 lb(US) (2.2 kg)
- Quantity per Set
- 1
- communication interface
- Modbus;Ethernet
- circuit breaker application
- HACR rated
- quality labels
- CE
- Standards
- UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
- product certifications
- UL;CSA;NOM
- IP degree of protection
- Front cover IP40 IEC 60529
- pollution degree
- 3 IEC 60947-1
- Ambient air temperature for operation
- 28…158 °F (-2…70 °C)
- Ambient Air Temperature for Storage
- -58…185 °F (-50…85 °C)
- operating altitude
- < 6561.68 ft (2000 m) without derating;5000 m with derating
- Category
- 01110-HD;JD UNIT MT BREAKER/SWITCH
- Discount Schedule
- DE2
- GTIN
- 785901930662
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.70 in (14.478 cm)
- Package 1 Width
- 7.40 in (18.796 cm)
- Package 1 Length
- 8.70 in (22.098 cm)
- Package 1 Weight
- 4.19 lb(US) (1.9 kg)
- Warranty
- 18 months
