Details for GVAU385

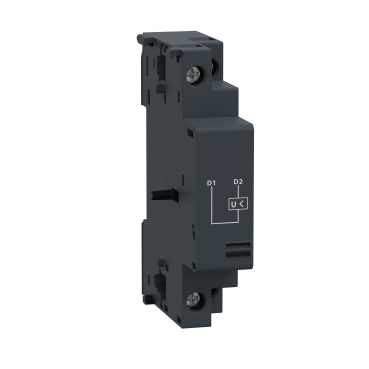

Undervoltage release (MN), TeSys Deca, 380-400V AC 50Hz / 440V AC 60Hz

TeSys GV electrical trip, MN undervoltage release, 380-400V AC 50Hz / 440V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys, TeSys Deca
Device short name: GVAU
Product or Component Type: Undervoltage release
range compatibility: TeSys GV2ME, TeSys GV2LE, TeSys GV2L, TeSys GV2P, TeSys GV3L, TeSys GV3P, TeSys Deca
[Uc] control circuit voltage: 380...400 V AC 50 Hz, 440 V AC 60 Hz
Control circuit voltage limits: 0.85...1.1 Un
[Ui] rated insulation voltage: 690 V AC IEC 60947-1, 600 V AC UL 60947-4-1, 600 V AC CSA C22.2 No 60947-4-1
Threshold tripping voltage: 0.7...0.35 Un
inrush power in VA: 12 VA AC
inrush power in W: 8 W
Hold-in Power Consumption in VA: 3.5 VA AC
hold-in power consumption in W: 1.1 W
operating time: 10...15 ms IEC 60947-1
On-load factor: 100 %
connections - terminals: screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²)solid, screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)solid, screw clamp terminals 1 0.00…0.00 in² (0.75…2.5 mm²)flexible without cable end, screw clamp terminals 2 0.00…0.00 in² (0.75…2.5 mm²)flexible without cable end, screw clamp terminals 1 0.00…0.00 in² (0.75…1.5 mm²)flexible with cable end, screw clamp terminals 2 0.00…0.00 in² (0.75…1.5 mm²)flexible with cable end
tightening torque: < 1.4 N.m screw clamp terminals
mechanical durability: 10000 cycles with GV3P and GV3L, 30000 cycles with GV2ME and GV2P
Quantity per Set: Set of 10
Height: 3.50 in (89 mm)
Width: 0.71 in (18 mm)
Depth: 2.60 in (66 mm)
Net Weight: 0.23 lb(US) (0.105 kg)
color: Dark grey
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110346022
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.27 in (8.3 cm)
Package 1 Width: 3.58 in (9.1 cm)
Package 1 Length: 1.38 in (3.5 cm)
Package 1 Weight: 4.13 oz (117.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 42
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 11.46 lb(US) (5.196 kg)
Warranty: 18 months
