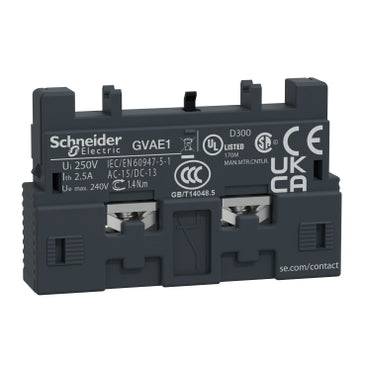

GVAE1 | TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO or NC, top mount, screw clamp | Square D by Schneider Electric

Brand: Square DSKU: GVAE1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GVAE1

Jump to: Overview & Specifications Reviews

Overview Details for GVAE1

TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO or NC, top mount, screw clamp

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO or 1NC instantaneous auxiliary contacts depending on the mounting orientation of the block. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys, TeSys Deca
Device short name: GVAE
Product or Component Type: Auxiliary contact block
Product Compatibility: GV2L, GV2P, GV2RT, GV3P, GV3L, GV2LE, GV2ME
Mounting Location: Front side
Pole contact composition: 1 NO/NC
Quantity per Set: Set of 10
[Ui] rated insulation voltage: 300 V UL 508, 300 V CSA C22.2 No 14, 250 V IEC 60947-1
[Ue] rated operational voltage: 24...240 V AC, 24...60 V DC
[Ith] conventional free air thermal current: 2.5 A
protection type: GG fuse 10 A, GB2CB06 circuit breaker 10 A
Mechanical durability: 100000 cycles
minimum switching current: 5 mA
minimum switching voltage: 17 V
rated operational power in VA: 120 VA 110…120 V AC-15 100000 cycles, 120 VA 230…240 V AC-15 100000 cycles, 48 VA 24 V AC-15 100000 cycles, 60 VA 48 V AC-15 100000 cycles
rated operational power in W: 15 W 48 V DC-13 100000 cycles, 24 W 24 V DC-13 100000 cycles, 9 W 60 V DC-13 100000 cycles
tightening torque: 12.39 lbf.in (1.4 N.m) screw clamp terminals
Height: 0.43 in (11 mm)
Width: 1.77 in (45 mm)
Depth: 1.14 in (29 mm)
Net Weight: 0.04 lb(US) (0.02 kg)
Environmental characteristic: Normal environment
Product Certifications: UKCA
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110343427
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.43 in (1.1 cm)
Package 1 Width: 2.36 in (6.0 cm)
Package 1 Length: 3.15 in (8.0 cm)
Package 1 Weight: 0.46 oz (13.0 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 0.79 in (2.0 cm)
Package 2 Width: 6.30 in (16.0 cm)
Package 2 Length: 6.69 in (17.0 cm)
Package 2 Weight: 4.94 oz (140.0 g)
Unit Type of Package 3: S02
Number of Units in Package 3: 220
Package 3 Height: 5.91 in (15.0 cm)
Package 3 Width: 11.81 in (30.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 7.46 lb(US) (3.385 kg)
Warranty: 18 months
