Details for GVAD0110

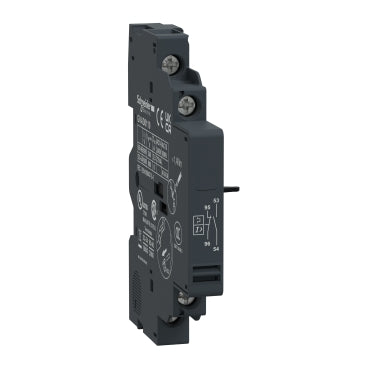

TeSys Deca - auxiliary contact - 1 NO + 1 NC (fault)

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NO instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys, TeSys Deca
Device short name: GVAD
Product or Component Type: Auxiliary contact block
Product Compatibility: GV2ME, GV2L, GV3P, GV2P, GV3L, GV2LE, GV2RT
Mounting Location: Left side
auxiliary contacts operation: Fault signal 1 NC
Pole contact composition: 1 NO + 1 NC
[Ui] rated insulation voltage: 690 V IEC 60947-1, 300 V UL 508, 300 V CSA C22.2 No 14
[Ue] rated operational voltage: 48...690 V AC, 24...240 V DC
[Ith] conventional free air thermal current: 6 A, 2.5 A fault signalling
protection type: GB2CB... circuit breaker, GG fuse 10 A
Mechanical durability: 100000 cycles
minimum switching current: 5 mA
minimum switching voltage: 17 V
rated operational power in VA: 300 VA 48 V AC-15 100000 cycles, 414 VA 690 V AC-15 100000 cycles, 500 VA 110…127 V AC-15 100000 cycles, 500 VA 500 V AC-15 100000 cycles, 650 VA 440 V AC-15 100000 cycles, 720 VA 230…240 V AC-15 100000 cycles, 850 VA 380…415 V AC-15 100000 cycles, 36 VA 24 V AC-14 1000 cycles, 48 VA 48 V AC-14 1000 cycles, 72 VA 110…127 V AC-14 1000 cycles
rated operational power in W: 120 W 240 V DC-13 100000 cycles, 140 W 110 V DC-13 100000 cycles, 140 W 24 V DC-13 100000 cycles, 180 W 60 V DC-13 100000 cycles, 240 W 48 V DC-13 100000 cycles, 15 W 48 V DC-13 1000 cycles, 24 W 24 V DC-13 1000 cycles, 9 W 60 V DC-13 1000 cycles
tightening torque: 12.39 lbf.in (1.4 N.m) screw clamp terminals
Height: 3.50 in (89 mm)
Width: 0.37 in (9.3 mm)
Depth: 2.60 in (66 mm)
Net Weight: 0.12 lb(US) (0.055 kg)
color: Dark grey
Environmental characteristic: Normal environment
Product Certifications: UKCA
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110343533
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.43 in (8.700 cm)
Package 1 Width: 0.59 in (1.500 cm)
Package 1 Length: 2.60 in (6.600 cm)
Package 1 Weight: 1.66 oz (47 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 3.74 in (9.500 cm)
Package 2 Width: 5.91 in (15.000 cm)
Package 2 Length: 3.94 in (10.000 cm)
Package 2 Weight: 17.64 oz (500 g)
Unit Type of Package 3: S02
Number of Units in Package 3: 60
Package 3 Height: 5.91 in (15.000 cm)
Package 3 Width: 11.81 in (30.000 cm)
Package 3 Length: 15.75 in (40.000 cm)
Package 3 Weight: 7.45 lb(US) (3.380 kg)
Warranty: 18 months
