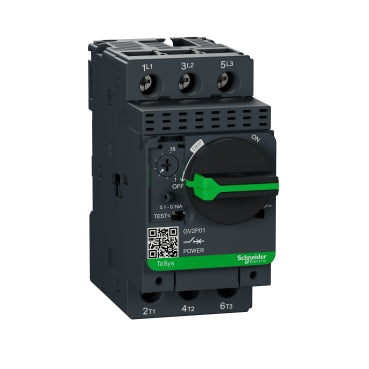

GV2P01 | TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary handle, 0.1…0.16 A, screw clamp terminals | Square D by Schneider Electric

Brand: Square DSKU: GV2P01

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV2P01

Jump to: Overview & Specifications Reviews

Overview Details for GV2P01

TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary handle, 0.1…0.16 A, screw clamp terminals

TeSys GV motor circuit breaker, 3 poles (3P), 0.16A/690V, for 3-phase motor applications less than 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.1-0.16A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys Deca
Product name: TeSys GV2, TeSys Deca
Product or Component Type: Motor circuit breaker
Device short name: GV2P
Device Application: Motor protection
Trip unit technology: Thermal-magnetic
Poles description: 3P
Network type: AC
utilisation category: AC-3 IEC 60947-4-1, Category A IEC 60947-2
network frequency: 50/60 Hz IEC 60947-4-1
fixing mode: 35 mm symmetrical DIN rail clipped, Panel screwed with 2 x M4 screws)
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2, 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 690 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2
Control Type: Rotary handle
Line Rated Current: 0.16 A
thermal protection adjustment range: 0.1…0.16 A IEC 60947-4-1
Magnetic tripping current: 1.5 A
[Ith] conventional free air thermal current: 0.16 A IEC 60947-4-1
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ui] rated insulation voltage: 690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
phase failure sensitivity: Yes IEC 60947-4-1
suitability for isolation: Yes IEC 60947-1 § 7-1-6
Power dissipation per pole: 2.5 W
Mechanical durability: 100000 cycles
electrical durability: 100000 cycles AC-3 415 V In
rated duty: Continuous IEC 60947-4-1
tightening torque: 15.05 lbf.in (1.7 N.m) screw clamp terminal
Width: 1.77 in (45 mm)
Height: 3.50 in (89 mm)
Depth: 3.82 in (97 mm)
color: Dark grey
standards: EN/IEC 60947-2, EN/IEC 60947-4-1
Product Certifications: CCC, UL, CSA, EAC, ATEX, BV, LROS (Lloyds register of shipping), UKCA, DNV-GL, RINA
IK degree of protection: IK04
IP degree of protection: IP20 IEC 60529
climatic withstand: IACS E10
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
ambient air temperature for operation: -4…140 °F (-20…60 °C)
mechanical robustness: Shocks 30 Gn for 11 ms, Vibrations 5 Gn, 5...150 Hz
operating altitude: 6561.68 ft (2000 m)
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110213409
Returnability: No
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.70 in (9.4 cm)
Package 1 Width: 3.94 in (10 cm)
Package 1 Length: 1.85 in (4.7 cm)
Package 1 Weight: 9.45 oz (268 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 20
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 12.57 lb(US) (5.7 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 320
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 23.62 in (60 cm)
Package 3 Length: 31.50 in (80 cm)
Package 3 Weight: 223.86 lb(US) (101.54 kg)
Warranty: 18 months
