GV2ME03 | TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 0.25...0.40 A, screw clamp terminals | Square D by Schneider Electric

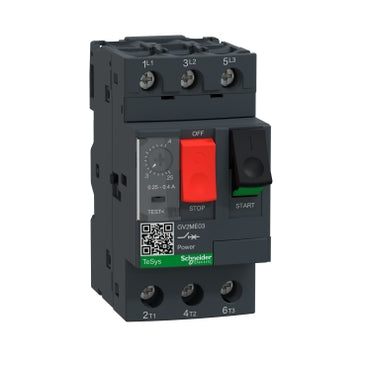

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GV2ME03
Overview
Details for GV2ME03
TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 0.25...0.40 A, screw clamp terminals
TeSys GV motor circuit breaker, 3 poles (3P), 0.4A/690V, for 3-phase motor applications 0.09kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.25-0.4A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).Specifications
- range
- TeSys Deca;TeSys Deca
- product name
- TeSys GV2;TeSys Deca
- Product or Component Type
- Motor circuit breaker
- device short name
- GV2ME
- Device Application
- Motor protection
- trip unit technology
- Thermal-magnetic
- poles description
- 3P
- network type
- AC
- utilisation category
- AC-3 IEC 60947-4-1;Category A IEC 60947-2
- network frequency
- 50/60 Hz IEC 60947-4-1
- motor power kW
- 0.09 kW 400/415 V AC 50/60 Hz
- breaking capacity
- 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;100 kA Icu 440 V AC 50/60 Hz IEC 60947-2;100 kA Icu 500 V AC 50/60 Hz IEC 60947-2;100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
- [Ics] rated service short-circuit breaking capacity
- 100 % 690 V AC 50/60 Hz IEC 60947-2;100 % 500 V AC 50/60 Hz IEC 60947-2;100 % 230/240 V AC 50/60 Hz IEC 60947-2;100 % 440 V AC 50/60 Hz IEC 60947-2;100 % 400/415 V AC 50/60 Hz IEC 60947-2
- Control Type
- Push-button
- Line Rated Current
- 0.4 A
- magnetic tripping current
- 5 A
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Ith] conventional free air thermal current
- 0.4 A IEC 60947-4-1
- [Uimp] rated impulse withstand voltage
- 6 kV IEC 60947-2
- power dissipation per pole
- 2.5 W
- mechanical durability
- 100000 cycles
- electrical durability
- 100000 cycles AC-3 415 V
- rated duty
- Continuous IEC 60947-4-1
- phase failure sensitivity
- Yes IEC 60947-4-1
- suitability for isolation
- Yes IEC 60947-1 § 7-1-6
- Width
- 1.77 in (45 mm)
- Height
- 3.50 in (89 mm)
- Depth
- 3.09 in (78.5 mm)
- Net Weight
- 0.57 lb(US) (0.26 kg)
- Standards
- EN/IEC 60947-2;EN/IEC 60947-4-1
- Product Certifications
- CCC;UL;CSA;EAC;ATEX;BV;LROS (Lloyds register of shipping);UKCA;DNV-GL;RINA
- IP degree of protection
- IP20 IEC 60529
- climatic withstand
- IACS E10
- Ambient Air Temperature for Storage
- -40…176 °F (-40…80 °C)
- fire resistance
- 1760 °F (960 °C) IEC 60695-2-11
- ambient air temperature for operation
- -4…140 °F (-20…60 °C)
- operating altitude
- 6561.68 ft (2000 m)
- Category
- 22367-MANUAL STR PROTECTOR - GV2
- Discount Schedule
- I11
- GTIN
- 3389110342994
- Returnability
- Yes
- Country of origin
- TH
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.66 in (9.3 cm)
- Package 1 Width
- 1.89 in (4.8 cm)
- Package 1 Length
- 3.35 in (8.5 cm)
- Package 1 Weight
- 7.97 oz (226 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 24
- Package 2 Height
- 5.91 in (15 cm)
- Package 2 Width
- 11.81 in (30 cm)
- Package 2 Length
- 15.75 in (40 cm)
- Package 2 Weight
- 12.67 lb(US) (5.746 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 384
- Package 3 Height
- 29.53 in (75 cm)
- Package 3 Width
- 23.62 in (60 cm)
- Package 3 Length
- 31.50 in (80 cm)
- Package 3 Weight
- 229.50 lb(US) (104.1 kg)
- Warranty
- 18 months
