GS2AH130 | External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 3R, for GS 30-400A UL | Square D by Schneider Electric

Brand: Square DSKU: GS2AH130

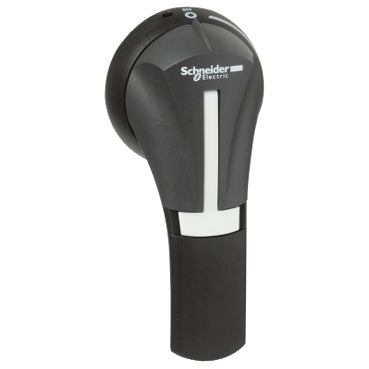

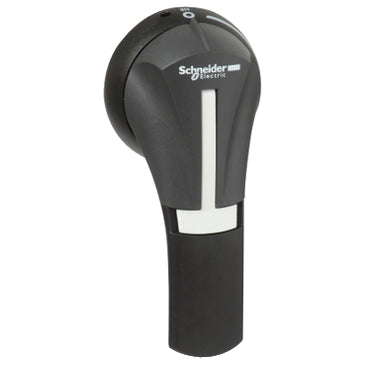

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GS2AH130

Jump to: Overview & Specifications Reviews

Overview Details for GS2AH130

External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 3R, for GS 30-400A UL

TeSys GS external operating handle for 3-pole 30-400A UL fuse switch-disconnectors GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, GS2QU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).

Specifications

Range of Product: TeSys
Range: TeSys
Device short name: GS2AH
Product or Component Type: Rotary handle
range compatibility: TeSys (TeSys GS) GS2EU, TeSys (TeSys GS) GS2GU, TeSys (TeSys GS) GS2JU, TeSys (TeSys GS) GS2MU, TeSys (TeSys GS) GS2QU
Type of operating handle: External frontal
Handle colour: Black
Handle front plate colour: Grey
Handle positions: O-I
Rotary handle padlocking: With
Switch rated current: 30 A, 60 A, 100 A, 200 A, 400 A
standards: UL, CSA
Net Weight: 0.53 lb(US) (0.24 kg)
NEMA Degree of Protection: NEMA 3R/12
Category: 22640-IEC DISCONNECT-GS1,LK3
Discount Schedule: I11
GTIN: 3389119411837
Returnability: Yes
Country of origin: TN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.56 in (6.500 cm)
Package 1 Width: 6.30 in (16.000 cm)
Package 1 Length: 6.34 in (16.100 cm)
Package 1 Weight: 8.71 oz (247.000 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 18
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 10.49 lb(US) (4.759 kg)
Warranty: 18 months
