GS2AE21 | TeSys GS, shaft extension, 10 x 10 x 400 mm, for 100 to 400 A GS2 switches | Square D by Schneider Electric

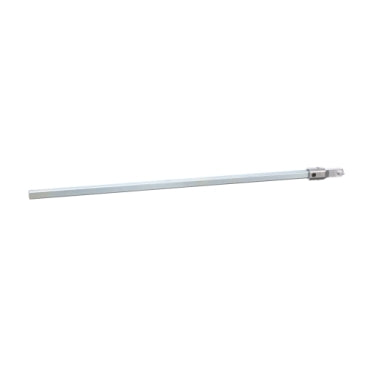

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GS2AE21

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D GS2AE21 Documents

Datasheet More Info

Overview

Details for GS2AE21

TeSys GS, shaft extension, 10 x 10 x 400 mm, for 100 to 400 A GS2 switches

TeSys GS accessory, shaft extension for external operating handle, to be used with 3-pole and 4-pole 30A-400A IEC/UL fuse switch-disconnectors GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2Q. Shaft length 400mm, cross section 10x10mm. Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Device short name: GS2AE
Product or Component Type: Shaft extension
Accessory / separate part category: Control accessory
range compatibility: TeSys (TeSys GS) GS2F, TeSys (TeSys GS) GS2G, TeSys (TeSys GS) GS2J, TeSys (TeSys GS) GS2K, TeSys (TeSys GS) GS2L, TeSys (TeSys GS) GS2M, TeSys (TeSys GS) GS2N, TeSys (TeSys GS) GS2P, TeSys (TeSys GS) GS2Q, FuPact (FuPacT GS) GSC50, FuPact (FuPacT GS) GSB63, FuPact (FuPacT GS) GSD63, FuPact (FuPacT GS) GSB100, FuPact (FuPacT GS) GSC125, FuPact (FuPacT GS) GSD125, FuPact (FuPacT GS) GSD160, FuPact (FuPacT GS) GSB200, FuPact (FuPacT GS) GSB250, FuPact (FuPacT GS) GSD250, FuPact (FuPacT GS) GSB400, FuPact (FuPacT GS) GSD400
switch rated current: 50 A, 60 A, 63 A, 100 A, 125 A, 160 A, 200 A, 250 A, 315 A, 400 A
Length: 15.75 in (400 mm)
Shaft cross section: 10 x 10 mm
Net Weight: 0.71 lb(US) (0.32 kg)
Category: 22640-IEC DISCONNECT-GS1,LK3
Discount Schedule: I11
GTIN: 3389119412049
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.79 in (2 cm)
Package 1 Width: 0.79 in (2 cm)
Package 1 Length: 15.83 in (40.2 cm)
Package 1 Weight: 11.01 oz (312 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 30
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 21.38 lb(US) (9.696 kg)
Package 3 Height: 5.91 in (15 cm)
Warranty: 18 months
