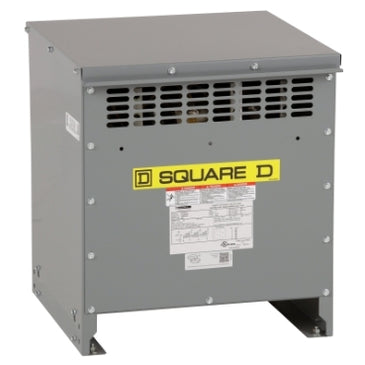

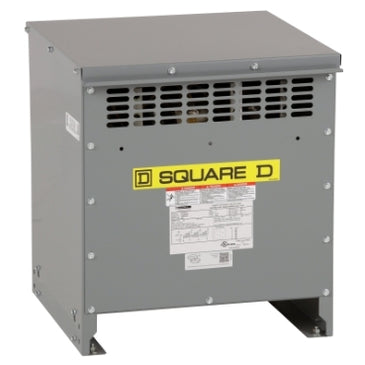

EXN15T3H | Low voltage transformer, DOE 2016, dry type, 3 phase, 15kVA, 480V pri, 208Y/120 sec, Al, 150C rise, Type 2 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EXN15T3H
Overview
Details for EXN15T3H
Low voltage transformer, DOE 2016, dry type, 3 phase, 15kVA, 480V pri, 208Y/120 sec, Al, 150C rise, Type 2
EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 15kVA, 480V primary (three wire), 208Y/120V secondary (four wire) with aluminum windings with a 220 insulation system design for 150 degree C temperature rise. This transformer’s DOE 2016 and NRCan efficiency is a minimum of 97.89% at 35% loading and 75°C temperature. Terminals are designed to accommodate wire ranges sized for 125% of the secondary nameplate current and 250% of the primary nameplate current. The terminals allow for NEMA two hole lugs and wiring bending radius to align with the wire ranges and to allow for side and bottom access. Units are natural air cooled with exhaust vents located on the front only, allowing the transformers to be mounted with rear clearance to obstructions of ½ inch. Units are shipped as Type 2 for indoor installation, field convertible to Type 3R via weathershield for outdoor installation. The transformers are floor mounted but field accessories are available for wall or trapeze (ceiling) mounting. EX transformers have a low sound level, with a minimum of 3dB below NEMA Standard ST-20 requirements. Units are specifically designed to function with other Square D equipment; inrush is coordinated to meet identified breaker trip curves, and IZ levels allow for let through current to match AIR levels of panelboards. See product data sheets for these values.Specifications
- Range of Product
- Square D
- Product or Component Type
- DOE 2016 energy efficient transformer
- device short name
- DOE 2016
- transformer type
- Energy efficient
- Device Application
- Low voltage electrical distribution
- box number
- 17M
- Phase
- 3 phase
- rated operational power in VA
- 15 kVA
- Network Frequency
- 60 Hz
- type of cooling
- Natural convection
- Primary Voltage
- 480 V delta
- number of tap-offs
- 2 2.5 % FCAN;4 2.5 % FCBN
- primary operational current
- 144.34 A 416.36 A 150 kVA
- secondary voltage
- 208Y/120 V
- Coil Material
- Aluminium
- Basic IMP level (BIL)
- 10 kV
- Temperature Rise
- 150 °C;220 °C insulated
- DOE Efficiency
- 97.96 % at 35 % load factor ;167 °F (75.0 °C)
- Sound Level
- 3 dB NEMA ST-20;39 dB
- %IZ
- 4.03 %
- %IX
- 1.79 %
- X/R Ratio
- 0.53
- inrush current
- 207 A
- Let Through Current
- 1.03 kA
- Transformer Losses
- 50 no load (core loss);592 load loss (coil loss)
- Transformer BTU/HR
- 227 16.6 %;297 25 %;676 50 %;1307 75 %;2191 100 %
- Height
- 23.98 in (609 mm)
- Depth
- 21.18 in (538 mm)
- Width
- 21.50 in (546 mm)
- Net Weight
- 188.01 lb(US) (85.28 kg)
- mounting support
- Floor;Floor;with 7400FMB;Ceiling;with 7400CMB17M;Wall;with 7400WMB17M
- degree of protection
- UL type 2;UL type 3R
- electrical connection
- 2 Hole Nema Pad primary 0.44 in (11.1 mm);2 Hole Nema Pad secondary 0.44 in (11.1 mm);4 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
- number of mounting holes
- 0.51 in (13 mm)
- Ambient Air Temperature for Operation
- 104 °F (40 °C)
- Average ambient air temperature for operation
- 30 °C
- Standards
- UL 1561;CSA C22.2 No 47;NEMA ST-20
- Category
- 16256-3PH EXN/2016 15-150KVA LVGP XFMR
- Discount Schedule
- PE2X
- GTIN
- 785901272472
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Package 1 Length
- 24.80 in (62.992 cm)
- Number of Units in Package 1
- 1
- Package 1 Width
- 25.10 in (63.754 cm)
- Package 1 Height
- 30.50 in (77.47 cm)
- Package 1 Weight
- 212.00 lb(US) (96.16 kg)
