Details for DU323RB

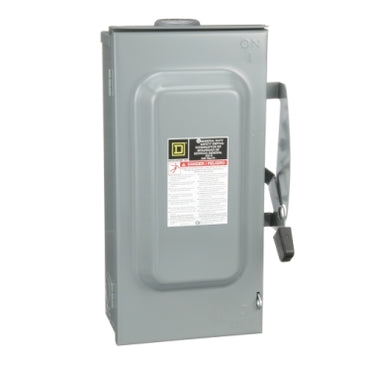

Safety switch, general duty, non fusible, 100A, 3 wire, 3 poles, 30hp, 240VAC, Type 3R, bolt on hub provision

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a three pole, 100A, non fusible disconnect with a 240VAC voltage rating. This switch has a NEMA 3R enclosure and is surface mounted. This non-fusible disconnect switch comes with no neutral. This switch comes with lugs suitable for aluminum or copper conductors. These general duty switches are UL listed.

Specifications

Product: Single Throw Safety Switch
Duty Rating: General duty
Device Application: Residential
Disconnect Type: Non-fusible disconnect switch
Factory Installed Neutral: None
Phase: 3 phase
Number of Poles: 3
Current Rating: 100 A
Voltage Rating: 240 V AC
Enclosure Rating NEMA: NEMA 3R
Motor power hp: 15 hp at 240 V AC 60 Hz for 1 phase motors;30 hp at 240 V AC 60 Hz for 3 phase motors
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 3-wire
Wire Size: AWG 14...AWG 1 copper;AWG 12...AWG 1 aluminium
tightening torque: 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) (AWG 14...AWG 10);35 lbf.in (3.95 N.m) (AWG 14...AWG 10);40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8);45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4);50 lbf.in (5.65 N.m) (AWG 3...AWG 1)
Depth: 6.5 in (165.10 mm)
Width: 10.5 in (266.70 mm)
Height: 17.5 in (444.50 mm)
Net Weight: 15.43 lb(US) (7 kg)
Certifications: UL listed file E2875
Category: 00106-D & DU SW;NEMA3R;30-200A
Discount Schedule: DE1A
GTIN: 785901491828
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.30 in (18.542 cm)
Package 1 Width: 10.50 in (26.67 cm)
Package 1 Length: 19.90 in (50.546 cm)
Package 1 Weight: 14.78 lb(US) (6.704 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 40
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 632.00 lb(US) (286.67 kg)
Warranty: 18 months
