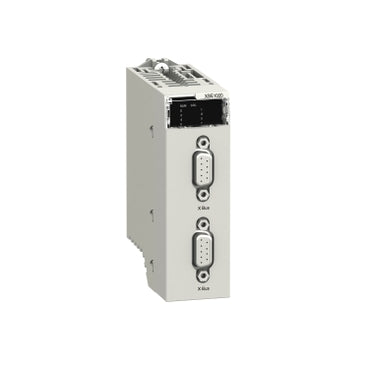

BMXXBE1000 | backplane expander, Modicon M340, for multiracks configuration | Square D by Schneider Electric

Brand: Square DSKU: BMXXBE1000

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXXBE1000

Jump to: Overview & Specifications Reviews

Overview Details for BMXXBE1000

backplane expander, Modicon M340, for multiracks configuration

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP0600, BMXXBP0400, BMXXBP0800 and BMXXBP1200 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of Product: Modicon M340 automation platform
Accessory / separate part category: Extension accessory
Accessory / Separate Part Type: Backplane
Accessory / separate part designation: Backplane expander
Product Compatibility: BMXXBP0600, BMXXBP0400, BMXXBP0800, BMXXBP1200
Accessory / separate part destination: For multiracks configuration
electrical connection: 2 female connectors SUB-D 9
local signalling: 1 LED green operating status (RUN) bus, 1 LED red collision error (COL) rack, 4 LEDs green rack adresses status
current consumption: 160 mA 24 V DC, 22 mA 3.3 V DC
Module format: Standard
IP Degree of Protection: IP20
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Relative Humidity: 10…95 % without condensation
Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
product certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
standards: EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3
environmental characteristic: Hazardous location class I division 2
Protective treatment: TC
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595863992175
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.5 cm)
Package 1 Width: 4.33 in (11.0 cm)
Package 1 Length: 4.53 in (11.5 cm)
Package 1 Weight: 6.31 oz (179.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 15
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 6.69 lb(US) (3.035 kg)
Warranty: 18 months
