BMXNOM0200H | Communication module, Modicon X80, Serial link module, 2 RS-485/232 ports in Modbus and Character mode, for severe environments | Square D by Schneider Electric

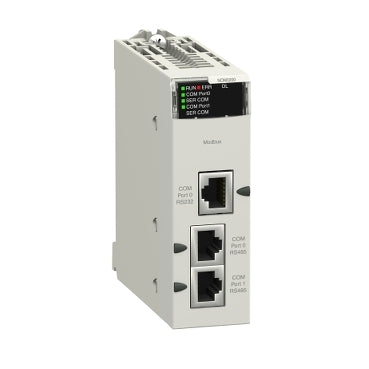

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BMXNOM0200H
Overview
Details for BMXNOM0200H
Communication module, Modicon X80, Serial link module, 2 RS-485/232 ports in Modbus and Character mode, for severe environments
This serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This module has 2 RS-485/232 ports in Modbus and character mode for harsh chemical environments. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It is an IP20 rated product. It weighs 0.23kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).Specifications
- Range of Product
- Modicon X80
- Product or Component Type
- Serial links module
- Product Specific Application
- For severe environments
- Concept
- Serial link
- integrated connection type
- RS232 RJ45 115.2 kbit/s 8 wires, RS485 RJ45 57.6 kbit/s 1 twisted pair
- Protective treatment
- Conformal coating
- Supply
- Internal power supply via rack
- Marking
- CE
- local signalling
- for module fault (ERR) 1 LED (red), for module running (RUN) 1 LED (green), for activity on the serial link (SER COM 0) 1 LED (green), for activity on the serial link (SER COM 1) 1 LED (green)
- current consumption
- 80 mA 24 V DC
- Module format
- Standard
- Net Weight
- 0.51 lb(US) (0.23 kg)
- Ambient Air Temperature for Operation
- -13…158 °F (-25…70 °C)
- Relative Humidity
- 10…95 % without condensation
- IP Degree of Protection
- IP20
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
- product certifications
- CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
- standards
- EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0
- environmental characteristic
- Gas resistant class Gx ISA S71.04, Gas resistant class 3C4 IEC 60721-3-3, Dust resistant class 3S4 IEC 60721-3-3, Sand resistant class 3S4 IEC 60721-3-3, Salt resistant level 2 IEC 68252, Mold growth resistant class 3B2 IEC 60721-3-3, Fungal spore resistant class 3B2 IEC 60721-3-3, Hazardous location class I division 2
- Category
- 18160-MODICON M340
- Discount Schedule
- PC34
- GTIN
- 3595864027388
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.17 in (5.5 cm)
- Package 1 Width
- 4.41 in (11.2 cm)
- Package 1 Length
- 4.65 in (11.8 cm)
- Package 1 Weight
- 8.08 oz (229.0 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 15
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 8.12 lb(US) (3.682 kg)
- Warranty
- 18 months
