BMXFTW301 | cord set, Modicon M340, 20-way terminal, one end flying leads, 3m | Square D by Schneider Electric

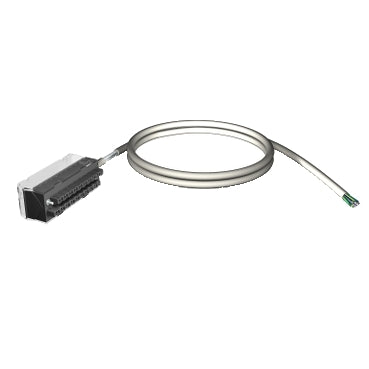

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXFTW301

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D BMXFTW301 Documents

Datasheet More Info

Overview

Details for BMXFTW301

cord set, Modicon M340, 20-way terminal, one end flying leads, 3m

This preassembled cordset is part of the Modicon X80 modules. It is compatible with 16-channel I/O modules with removable terminal block. It enables the connection between the I/O of modules with 20-way removable terminal block and the sensors, preactuators. It is equipped with one 20-way spring-type removable terminal block and one end with color-coded flying leads. It is 3 meters long.

Specifications

Range of Product: Modicon X80
Accessory / Separate Part Type: Preformed cordset
Accessory / separate part designation: Preformed cordset with one end with flying leads
Accessory / separate part destination: For I/O module with removable terminal block
number of cables: 1
electrical connection: 1 end with color-coded flying leads DIN 47100, 1 removable terminal block 20 ways
Cable length: 9.84 ft (3 m)
Total number of wires: 20
Wire section: 0.00 in² (0.324 mm²)
Net Weight: 1.87 lb(US) (0.85 kg)
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595863920307
Returnability: Yes
Country of origin: TN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.20 in (5.6 cm)
Package 1 Width: 8.66 in (22.0 cm)
Package 1 Length: 9.06 in (23.0 cm)
Package 1 Weight: 18.06 oz (512.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 10
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 11.44 lb(US) (5.19 kg)
Warranty: 18 months
