BMXFCC103 | cord set, Modicon M340, 40-way terminal, 2 x HE10 connector, 1 m | Square D by Schneider Electric

Brand: Square DSKU: BMXFCC103

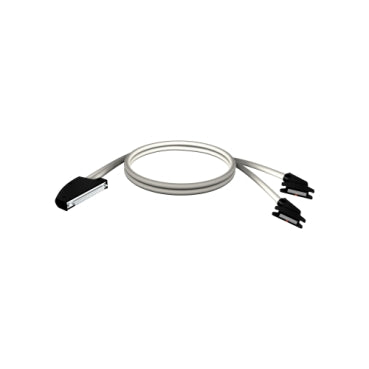

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXFCC103

Jump to: Overview & Specifications Reviews

Overview Details for BMXFCC103

cord set, Modicon M340, 40-way terminal, 2 x HE10 connector, 1 m

This preassembled cordset is part of the Modicon X80 modules. It is compatible with 32-channels I/O modules. It enables the connection between I/O of modules with 40-way connectors to Modicon Telefast ABE7 rapid wiring connection. It is equipped with one 40-way connector at one end and two HE 10 connectors at the other end, and is 1 meter long.

Specifications

Range of Product: Modicon X80
Accessory / Separate Part Type: Preformed cordset
Accessory / separate part designation: Preformed cordset for Telefast Advantys ABE7 sub-bases
Accessory / separate part destination: For I/O module with 40-way connectors
number of cables: 2
electrical connection: 1 connector 40 ways, 2 connectors HE10
Cable length: 3.28 ft (1 m)
Total number of wires: 40
Wire section: 0.00 in² (0.324 mm²)
Net Weight: 0.77 lb(US) (0.35 kg)
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595863919769
Returnability: Yes
Country of origin: TN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.36 in (6.0 cm)
Package 1 Width: 10.24 in (26.0 cm)
Package 1 Length: 11.02 in (28.0 cm)
Package 1 Weight: 12.70 oz (360.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 10
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 8.49 lb(US) (3.85 kg)
Warranty: 18 months
