BMXFCA300 | cord set, Modicon X80, 20-way terminal, SUB-D25 connector, 3m | Square D by Schneider Electric

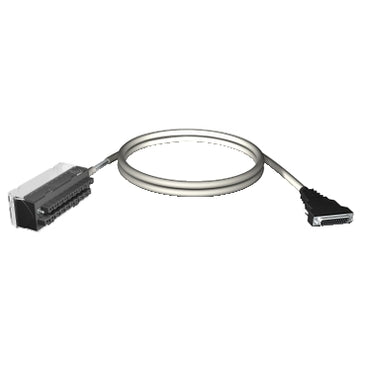

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXFCA300

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D BMXFCA300 Documents

Datasheet More Info

Overview

Details for BMXFCA300

cord set, Modicon X80, 20-way terminal, SUB-D25 connector, 3m

This preassembled cordset is part of the Modicon X80 modules. It is compatible with high level analog input / output modules BMXAMI0410, BMXAMO0210 and BMXAMO0410. It enables the connection between I/O of modules with 20-way connectors to Modicon Telefast ABE7 rapid wiring connection. It is equipped with one 20-way connector at one end and one 25-way SUB-D connector at the other end, it is 3 meters long.

Specifications

Range of Product: Modicon X80
Accessory / Separate Part Type: Preformed cordset
Product Compatibility: ABE7CPA02, BMXAMI0410, ABE7CPA410
electrical connection: 1 connector SUB-D 25 sub-base side, 1 removable terminal block, 20 ways module side
Cable length: 9.84 ft (3 m)
Net Weight: 1.10 lb(US) (0.5 kg)
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595863920451
Returnability: No
Country of origin: TN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.57 in (4.0 cm)
Package 1 Width: 9.06 in (23.0 cm)
Package 1 Length: 9.84 in (25.0 cm)
Package 1 Weight: 17.46 oz (495.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 15
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 19.57 lb(US) (8.878 kg)
Warranty: 18 months
