BMXDDO1602 | discrete output module X80 - 16 outputs - solid state - 24 V DC positive | Square D by Schneider Electric

Brand: Square DSKU: BMXDDO1602
Square D | BMXDDO1602
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BMXDDO1602

Overview Details for BMXDDO1602

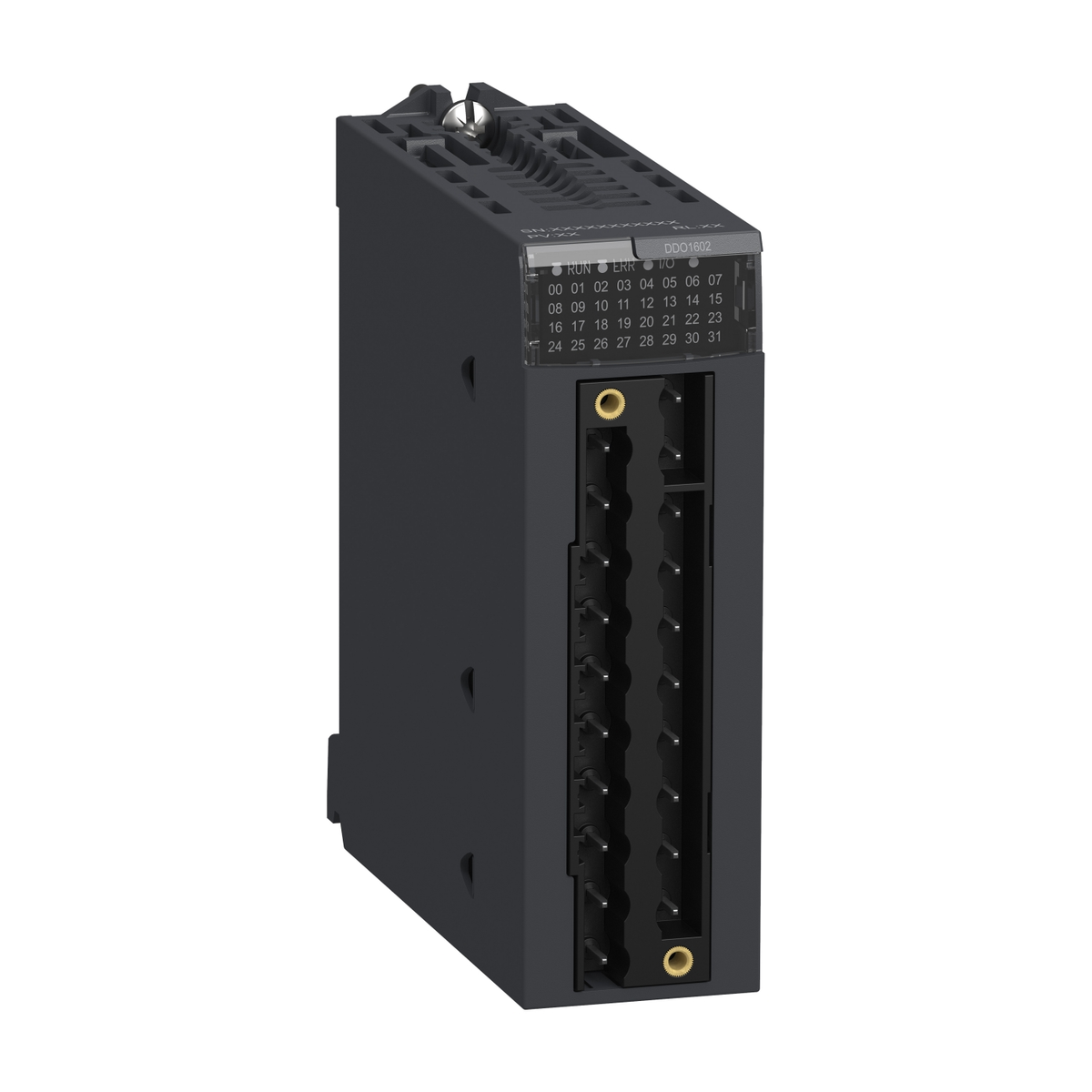

discrete output module X80 - 16 outputs - solid state - 24 V DC positive

This discrete output module is part of the Modicon X80 modules. It has 16 transistor protected outputs, 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Specifications

Range of Product
Modicon X80
Product or Component Type
Discrete output module
discrete output number
16 EN/IEC 61131-2
Discrete output type
Solid state
Discrete output logic
Positive
discrete output voltage
24 V 19...30 V DC
Discrete output current
0.5 A
current per channel
0.625 A
maximum current per module
10 A
maximum leakage current
0.5 mA at state 0
maximum voltage drop
<1.2 V at state 1
insulation resistance
> 10 MOhm 500 V DC
power dissipation in W
4 W
response time on output
1.2 ms
Paralleling of outputs
Yes : 2 maximum
typical current consumption
79 mA 3.3 V DC
MTBF reliability
392285 H
protection type
External fuse reverse polarity protection, short-circuit protection, overload protection, overvoltage protection
Output overload protection
With electronic circuit breaker 1.5 In < Id < 2 In, With current limiter
output overvoltage protection
With transil diode
Output short-circuit protection
With 2 A external fuse
Reverse polarity protection
Reverse mounted diode
voltage detection threshold
< 14 V DC preactuator fault, > 18 V DC preactuator at state 0
maximum tungsten load
6 W
Switching frequency
0.5/LI² Hz
Load impedance ohmic
> 48 Ohm
status LED
1 LED (Green) module operating (RUN), 1 LED per channel (Green) channel diagnostic, 1 LED (Red) module error (ERR), 1 LED (Red) module I/O
Net Weight
0.26 lb(US) (0.12 kg)
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
dielectric strength
1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic
vibration resistance
3 gn
shock resistance
30 gn
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
relative humidity
5…95 % 131 °F (55 °C) without condensation
operating altitude
0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Category
18160-MODICON M340
Discount Schedule
PC34
GTIN
3595863910469
Returnability
Yes
Country of origin
ID
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.19 in (5.56 cm)
Package 1 Width
4.37 in (11.096 cm)
Package 1 Length
4.63 in (11.759 cm)
Package 1 Weight
5.64 oz (160.0 g)
Unit Type of Package 2
S02
Number of Units in Package 2
15
Package 2 Height
5.91 in (15.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
6.70 lb(US) (3.04 kg)
Warranty
18 months
