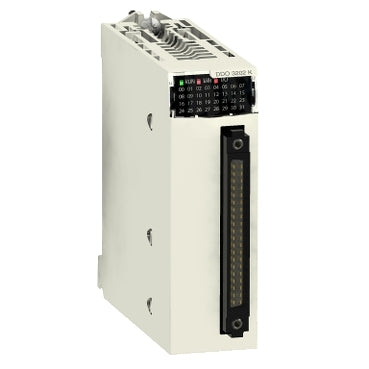

BMXDDI3202KH | discrete input module X80 - 32 inputs - 24 V DC positive - severe | Square D by Schneider Electric

Brand: Square DSKU: BMXDDI3202KH

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXDDI3202KH

Jump to: Overview & Specifications Reviews

Overview Details for BMXDDI3202KH

discrete input module X80 - 32 inputs - 24 V DC positive - severe

Specifications

Range of Product: Modicon X80
Product or Component Type: Discrete input module
Product Specific Application: For severe environments
Discrete input number: 32
discrete input type: Isolated
input type: Current sink (logic positive)
discrete input voltage: 24 V DC positive
discrete input current: 2.5 mA
input compatibility: With 2-wire/3-wire proximity sensors IEC 60947-5-2, With 2-wire/3-wire proximity sensors IEC 61131-2 Type 1
Sensor power supply: 19...30 V
current state 1 guaranteed: >= 2 mA
current state 0 guaranteed: <= 0.5 mA
Input impedance: 9600 Ohm
insulation resistance: > 10 MOhm 500 V DC
power dissipation in W: 3.9 W
DC typical response time: 4 ms
DC maximum response time: 7 ms
Paralleling of inputs: No
typical current consumption: 121 mA 3.3 V DC
MTBF reliability: 696320 H
protection type: 1 external fuse per group of channel 0.5 A fast blow, reverse polarity protection
voltage detection threshold: < 14 V DC sensor fault, > 18 V DC sensor OK
status LED: 1 LED (Green) module operating (RUN), 1 LED per channel (Green) channel diagnostic, 1 LED (Red) module error (ERR), 1 LED (Red) module I/O
Net Weight: 0.25 lb(US) (0.112 kg)
IP Degree of Protection: IP20
Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
environmental characteristic: Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2
dielectric strength: 1500 V AC 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of channels
vibration resistance: 3 gn
shock resistance: 30 gn
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
relative humidity: 5…95 % -13…158 °F (-25…70 °C) without condensation
Protective treatment: Conformal coating
operating altitude: 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3606480927805
Returnability: No
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.20 in (5.6 cm)
Package 1 Width: 4.45 in (11.3 cm)
Package 1 Length: 4.65 in (11.8 cm)
Package 1 Weight: 5.68 oz (161 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 15
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 7.94 lb(US) (3.6 kg)
Package 3 Height: 27.56 in (70 cm)
Warranty: 18 months
