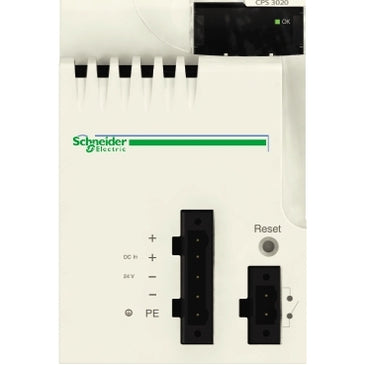

BMXCPS3020H | power supply module X80 - 24..48 V isolated DC - for severe environments | Square D by Schneider Electric

Brand: Square DSKU: BMXCPS3020H

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXCPS3020H

Jump to: Overview & Specifications Reviews

Overview Details for BMXCPS3020H

power supply module X80 - 24..48 V isolated DC - for severe environments

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated primary voltage of 24V to 48V DC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.34kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of Product: Modicon X80
Product or Component Type: Power supply module
backplane compatibility: Not compatible with BMEXBP..02
Product Specific Application: For severe environments
Primary Voltage: 24...48 V isolated
Supply circuit type: DC
secondary power: 15 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply, 31.2 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor, 11.3 W 3.3 V DC -13…158 °F (-25…70 °C) I/O module logic power supply, 23.4 W 24 V DC -13…158 °F (-25…70 °C) I/O module power supply and processor
Primary voltage limit: 18...62.4 V
input current: 0.83 A 48 V, 1.65 A 24 V
inrush current: 30 A 24 V, 60 A 48 V
I²t on activation: 1 A².s 24 V, 3 A².s 48 V
It on activation: 0.2 A.s 24 V, 0.3 A.s 48 V
protection type: Internal fuse not accessible primary circuit, Overload protection secondary circuit, 24 V sensor power supply, Overvoltage protection secondary circuit, 24 V sensor power supply, Short-circuit protection secondary circuit, 24 V sensor power supply
current at secondary voltage: 1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
Maximum power dissipation in W: 8.5 W
status LED: 1 LED (Green) rack voltage OK
Control Type: RESET push-button cold restart
electrical connection: 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth
maximum cable distance between devices: 32.81 ft (10 m) power supply cable copper 0.00 in² (1.5 mm²), 49.21 ft (15 m) power supply cable copper 0.00 in² (2.5 mm²)
insulation resistance: >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary
Net Weight: 0.75 lb(US) (0.34 kg)
Immunity to microbreaks: 1 ms
dielectric strength: 1500 V primary/ground, 1500 V primary/secondary
vibration resistance: 3 gn
shock resistance: 30 gn
IP Degree of Protection: IP20
Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
product certifications: CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
standards: EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0
environmental characteristic: Gas resistant class Gx ISA S71.04, Gas resistant class 3C4 IEC 60721-3-3, Dust resistant class 3S4 IEC 60721-3-3, Sand resistant class 3S4 IEC 60721-3-3, Salt resistant level 2 IEC 68252, Mold growth resistant class 3B2 IEC 60721-3-3, Fungal spore resistant class 3B2 IEC 60721-3-3, Hazardous location class I division 2
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
relative humidity: 5…95 % 131 °F (55 °C) without condensation
Protective treatment: Conformal coating
operating altitude: 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595864029771
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.43 in (13.8 cm)
Package 1 Width: 6.18 in (15.7 cm)
Package 1 Length: 6.26 in (15.9 cm)
Package 1 Weight: 17.11 oz (485.0 g)
Unit Type of Package 2: S04
Number of Units in Package 2: 12
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 15.75 in (40.0 cm)
Package 2 Length: 23.62 in (60.0 cm)
Package 2 Weight: 14.92 lb(US) (6.767 kg)
Warranty: 18 months
