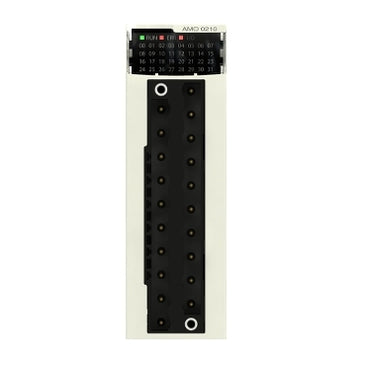

BMXAMO0410H | isolated analog output module X80 - 4 outputs - severe | Square D by Schneider Electric

Brand: Square DSKU: BMXAMO0410H

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXAMO0410H

Jump to: Overview & Specifications Reviews

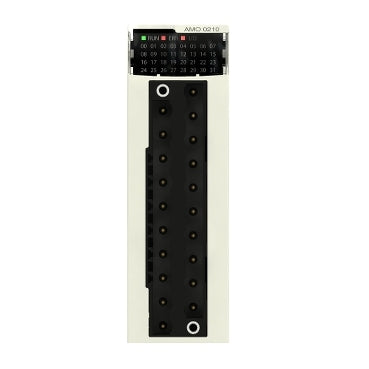

Overview Details for BMXAMO0410H

isolated analog output module X80 - 4 outputs - severe

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This isolated analogue output module has 4 outputs with 15bit + sign resolution. It is an output module which work with internal power supply via rack. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of Product: Modicon X80
Product or Component Type: Analog output module
Product Specific Application: For severe environments
electrical connection: 20 ways 1 connector
Isolation between channels: Isolated
measurement error: 0.1 % of full scale 25 °C, <= 0.45 % of full scale - 25...70 °C
temperature drift: 45 ppm/°C +/- 10 V, 45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
Minimum crosstalk attenuation: 80 dB
EMI/RFI Noise rejection (100 kHz to 10 MHz): 100 dB
isolation voltage: 1400 V DC between channels and ground, 1400 V DC between channels and bus, 750 V DC between channels
detection type: Open circuit 0...20 mA, Open circuit 4...20 mA, Short circuit +/- 10 V
load impedance ohmic: >= 1000 Ohm +/- 10 V, <= 500 Ohm 0...20 mA, <= 500 Ohm 4...20 mA
Output level: High level
Analogue output number: 4
analogue output type: Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V
analogue output resolution: 15 bits + sign
Supply: Internal power supply via rack
Conversion time: <= 1 ms
maximum conversion value: 0...21 mA 0...20 mA, 0...21 mA 4...20 mA, +/- 10.5 V +/- 10 V
Fallback mode: Configurable, Predefined
operating altitude: 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
status LED: 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
Net Weight: 0.33 lb(US) (0.15 kg)
power consumption in W: 3 W 24 V DC typical, 3.6 W 24 V DC maximum, 0.45 W 3.3 V DC typical, 0.51 W 3.3 V DC maximum
vibration resistance: 3 gn
shock resistance: 30 gn
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
relative humidity: 5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection: IP20
Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product Certifications: CE, RCM, CSA, EAC, Merchant Navy, UL, ATEX, IEC-Ex
standards: EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
environmental characteristic: Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2, Hazardous location
Protective treatment: Conformal coating
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595864156637
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.5 cm)
Package 1 Width: 4.33 in (11.0 cm)
Package 1 Length: 4.53 in (11.5 cm)
Package 1 Weight: 7.76 oz (220.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 15
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 7.94 lb(US) (3.6 kg)
Warranty: 18 months
