BMENOS0300 | Network Option Switch | Square D by Schneider Electric

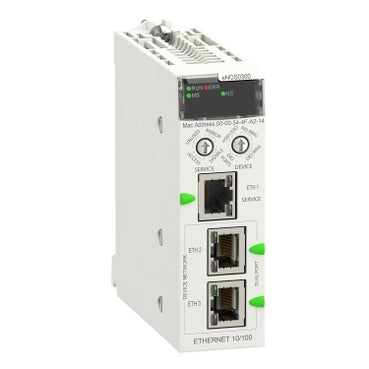

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMENOS0300

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D BMENOS0300 Documents

Datasheet More Info

Overview

Details for BMENOS0300

Network Option Switch

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This network option switch has 3 ports. It is a network option switch with a rated supply voltage of 24V and a power consumption of 4.5W. This product is robust, high quality and based on the latest innovative technology. Integrated connections are EtherNet/IP for device network and service port. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, ABS, BV, GL, EAC, LR, DNV, RINA. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This switch module is compatible with BMEXBP backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of Product: Modicon X80
Product or Component Type: Switch module
Product Compatibility: BMEXBP... backplane
[Us] rated supply voltage: 24 V back plane
power consumption in W: 3.3 W 135 mA 25 °C, 4.5 W 185 mA 60 °C
Number of port: 3
integrated connection type: Ethernet/IP device network, Ethernet/IP service port
communication port protocol: EtherNet/IP
local signalling: for module active (RUN) 1 LED (green), for module error (ERR) 1 LED (red), for module status (Mod Status) 1 LED (green/red), for network communication status (Net Status) 1 LED (green/red)
Module format: Standard
Marking: CE
Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
IP Degree of Protection: IP20
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Operating altitude: <= 6561.68 ft (2000 m)
Maximum altitude transport: 9842.52 ft (3000 m)
Overvoltage category: II
Relative Humidity: 95 % without condensation
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3606480800061
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.5 cm)
Package 1 Width: 4.33 in (11.0 cm)
Package 1 Length: 4.53 in (11.5 cm)
Package 1 Weight: 9.14 oz (259.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 15
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 9.12 lb(US) (4.137 kg)
