BMEH584040K | redundant processor kit, Modicon M580, 16MB, 61 Ethernet devices, 16 Remote I/O racks (X80 & Quantum I/O) | Square D by Schneider Electric

Brand: Square DSKU: BMEH584040K

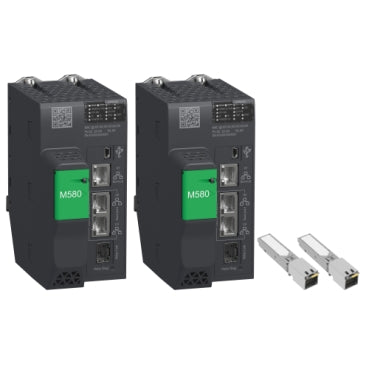

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMEH584040K

Jump to: Overview & Specifications Reviews

Overview Details for BMEH584040K

redundant processor kit, Modicon M580, 16MB, 61 Ethernet devices, 16 Remote I/O racks (X80 & Quantum I/O)

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This hot standby (HSBY) kit is an accessory kit of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC). It is made of 2x BMEH584040 processor module and 2x 490NAC0100 SFP socket. It is an IP20 rated product. It weighs 1.698kg. It is suitable for medium to large process applications. This product is certified by CE, CSA, RCM, UL, Merchant Navy, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Specifications

Range of Product: Modicon M580
Marking: CE
vibration resistance: 3 gn
shock resistance: 30 gn
Ambient Air Temperature for Operation: -13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
operating altitude: 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
relative humidity: 5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection: IP20
Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
product certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
standards: EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3
environmental characteristic: Hazardous location class I division 2
Net Weight: 3.74 lb(US) (1.698 kg)
Category: 18161-MODICON M580 CONTROLLERS HSBY
Discount Schedule: PC34
GTIN: 3606480927423
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.91 in (15 cm)
Package 1 Width: 11.81 in (30 cm)
Package 1 Length: 15.75 in (40 cm)
Package 1 Weight: 5.02 lb(US) (2.275 kg)
