BMEH584040 | Redundant processor, Modicon M580, 16MB, 61 Ethernet devices, 16 Remote I/O racks (X80 & Quantum I/O) | Square D by Schneider Electric

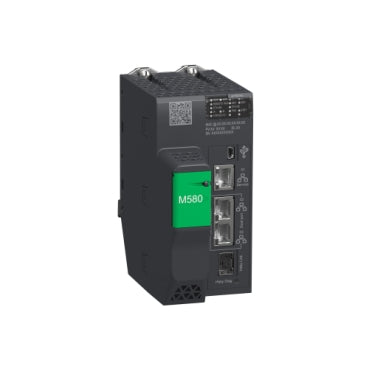

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BMEH584040
Overview Details for BMEH584040
Redundant processor, Modicon M580, 16MB, 61 Ethernet devices, 16 Remote I/O racks (X80 & Quantum I/O)
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 295mA at 24V DC. It supports 16384 discrete, 4096 analogue local I/O channels and 128 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 16MB for program, 2048kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.Specifications
- Range of Product
- Modicon M580
- Product or Component Type
- Redundant processor module
- Number of racks
- 1
- Application specific I/O
- HART, SSI encoder, Serial link, Motion control, Accurate time stamping, Counter
- Checks
- Process control
- Control channels
- Programmable loops
- integrated connection type
- 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB type mini B, 1 Ethernet HSBY port
- number of remote I/O station
- 16 - 2 X80 and Quantum drops
- Number of distributed equipment
- 64
- communication module processor capacity
- 8 AS-Interface module, 4 Ethernet communication module
- Communication Service
- RIO scanner, DIO scanner
- memory description
- Expandable flash, 4 GB data storage, Integrated RAM, 10 kB system memory, Integrated RAM, 16 MB program, Integrated RAM, 2048 kB data
- Application structure
- 1 cyclic/periodic master task, 1 periodic fast task
- number of instructions per ms
- 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean
- current consumption
- 295 mA 24 V DC
- MTBF reliability
- 600000 H
- Marking
- CE
- vibration resistance
- 3 gn
- shock resistance
- 30 gn
- Ambient Air Temperature for Operation
- 32…140 °F (0…60 °C)
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- operating altitude
- 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- relative humidity
- 5…95 % 131 °F (55 °C) without condensation
- IP Degree of Protection
- IP20
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Supply
- Internal power supply via rack
- status LED
- 1 LED (Green) processor running (RUN), 1 LED (Red) processor or system fault (ERR), 1 LED (Red) I/O module fault (I/O), 1 LED (Green) download in progress (DL), 1 LED (Red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (Green) peer processor running (REMOTE RUN), 1 LED (Green) processor ID set to A (A), 1 LED (Green) processor ID set to B (B), 1 LED (Green) processor acting as Primary (PRIM), 1 LED (Green) processor acting as Standby (STBY), 1 LED (Green) I/O values overrided by user (FORCED IO), 1 LED (Green) Hot standby link status (Hsby Diag)
- Net Weight
- 1.87 lb(US) (0.849 kg)
- Category
- 18161-MODICON M580 CONTROLLERS HSBY
- Discount Schedule
- PC34
- GTIN
- 3606485439990
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.54 in (9.0 cm)
- Package 1 Width
- 7.09 in (18.0 cm)
- Package 1 Length
- 9.84 in (25.0 cm)
- Package 1 Weight
- 31.36 oz (889.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 6
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 12.72 lb(US) (5.77 kg)
